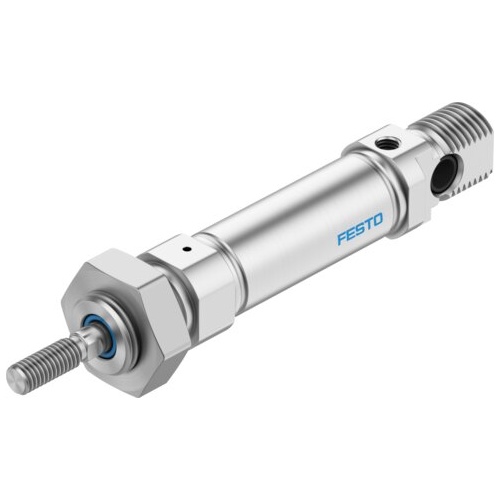

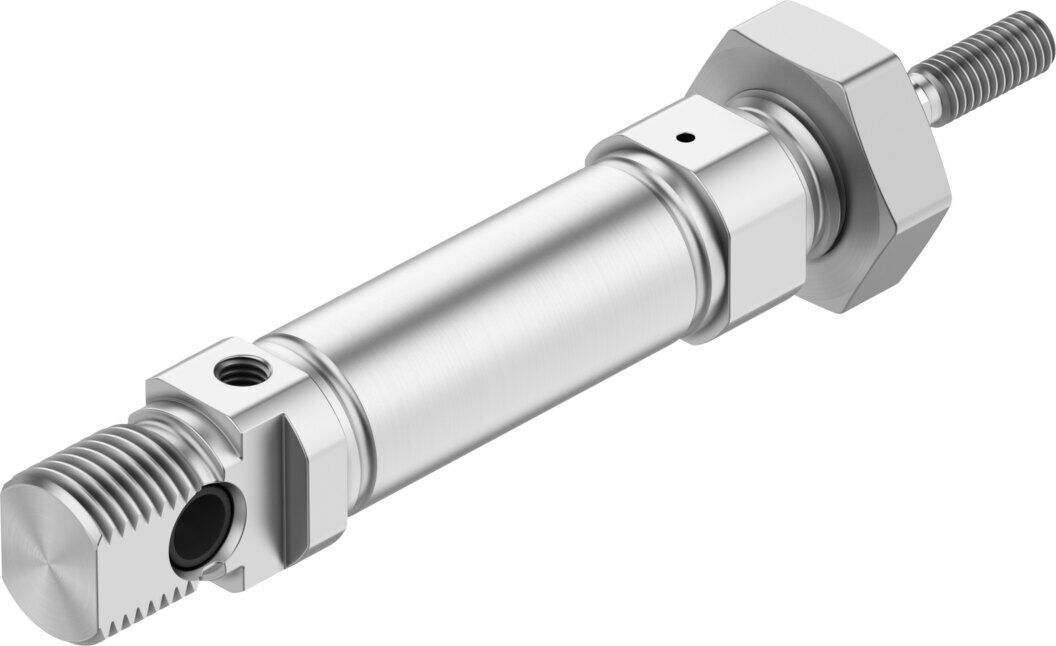

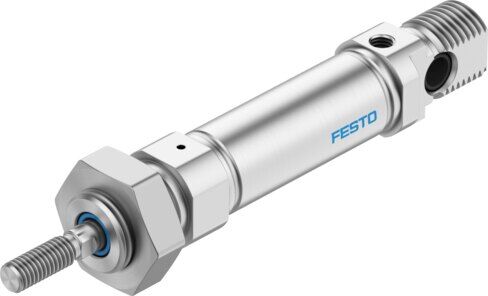

ISO cylinder

ESNU-16-10-P-A

19263





GTIN: 4052568003524

Mode of operation
Pushing - Single-acting
Piston diameter
16 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
106.5 N
Stroke
10 mm
Cushioning
Elastic cushioning rings/plates at both ends

Technical Data

  • Stroke10 mm
  • Piston diameter16 mm
  • Piston rod threadM6
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • Conforms to standardISO 6432
  • Piston-rod endMale thread
  • DesignPiston Piston rod Cylinder barrel
  • Position detectionVia proximity switch
  • Symbol00991729
  • VariantsPiston rod at one end
  • Operating pressure0.12 MPa ... 1 MPa
  • Operating pressure1.2 bar ... 10 bar
  • Mode of operationPushing Single-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.15 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke106.5 N
  • Moving mass for 0 mm stroke23 g
  • Additional moving mass per 10 mm stroke2 g
  • Basic weight for 0 mm stroke89.9 g
  • Additional weight per 10 mm stroke4.6 g
  • Type of mountingWith accessories
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material coverWrought aluminium alloy Colourless anodised
  • Material sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy stainless steel
  • Material cylinder barrelHigh-alloy stainless steel
