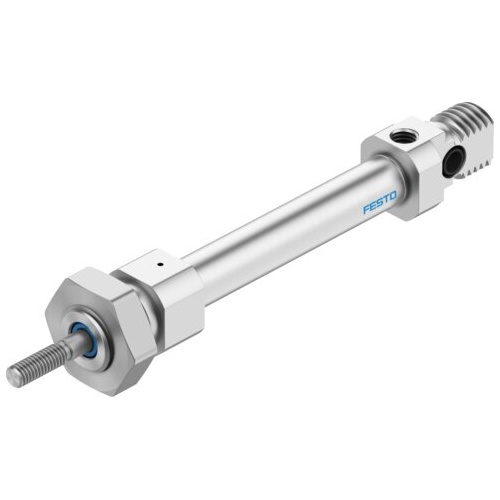

ISO cylinder

ESNU-8-25-P-A

19255





GTIN: 4052568067137

Mode of operation
Pushing - Single-acting
Piston diameter
8 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
24.6 N
Stroke
25 mm
Cushioning
Elastic cushioning rings/plates at both ends


Technical Data

  • Stroke25 mm
  • Piston diameter8 mm
  • Piston rod threadM4
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • Conforms to standardISO 6432
  • Piston-rod endMale thread
  • DesignPiston Piston rod Cylinder barrel
  • Position detectionVia proximity switch
  • Symbol00991729
  • VariantsPiston rod at one end
  • Operating pressure0.15 MPa ... 1 MPa
  • Operating pressure1.5 bar ... 10 bar
  • Mode of operationPushing Single-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.03 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke24.6 N
  • Moving mass for 0 mm stroke7.5 g
  • Additional moving mass per 10 mm stroke1 g
  • Basic weight for 0 mm stroke35 g
  • Additional weight per 10 mm stroke2.4 g
  • Type of mountingWith accessories
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material coverWrought aluminium alloy Colourless anodised
  • Material sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy stainless steel
  • Material cylinder barrelHigh-alloy stainless steel









SKU 19255
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
