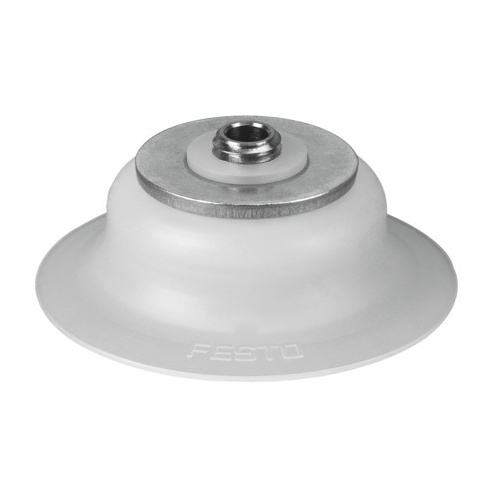

Suction cup with connectionESS-20-SS

189296

GTIN: 4052568042127

Suction cup diameter
20 mm
Suction cup shape
Round, flat
Material suction cup
VMQ (silicone)





Technical Data Suction cup with connection ESS-20-SS

  • Min. workpiece radius60 mm
  • Nominal size3 mm
  • Suction cup diameter20 mm
  • Suction cup volume0.318 cm³
  • Position of connectionOn top
  • Mounting positionAny
  • Symbol00991485
  • Correlation to suction-cup holderSize 4
  • Suction cup shapeRound, flat
  • Operating pressure-0.095 MPa ... 0 MPa
  • Operating pressure-0.95 bar ... 0 bar
  • Operating pressure-13.775 psi ... 0 psi
  • Nominal operating pressure-0.07 MPa
  • Nominal operating pressure-0.7 bar
  • Nominal operating pressure-10.15 psi
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-30 °C ... 180 °C
  • Holding force at nominal operating pressure16.3 N
  • Lateral force at nominal operating pressure10.5 N
  • Product weight6.4 g
  • Type of mountingVia vacuum port
  • Vacuum connectionM6
  • ColourTransparent
  • Shore hardness50 +/-5
  • Material screwed plugNickel-plated brass Steel, galvanised and chrome-plated
  • Note on materialsRoHS compliant
  • Material suction cupVMQ (silicone)
SKU 189296
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
