Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



04/2026 - Product is being phased out. Do not use for new designs.




11/2026 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2026 - Product is discontinued.

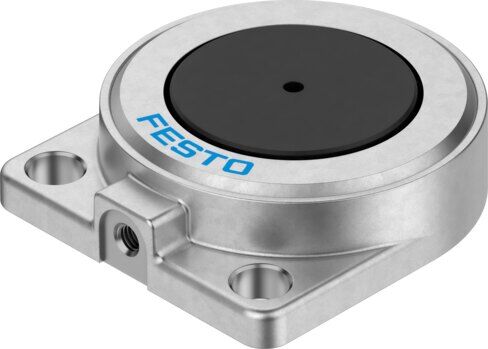

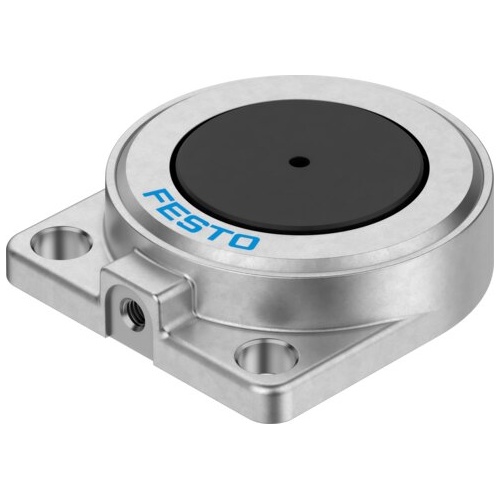

Clamping module

EV-12-3

150681





GTIN: 4052568069780

Clamping surface
Diameter 12
Stroke
3 mm

Technical Data

  • Stroke3 mm
  • Clamping surfaceDiameter 12
  • Mounting positionoptional
  • Mode of operationSingle-acting
  • Symbol00991208
  • Operating pressure≤0.6 MPa
  • Operating pressure≤6 bar
  • Operating pressure≤87 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 40 °C
  • Product weight11 g
  • Type of mountingWith through-hole
  • Pneumatic connectionM3
  • Material housingDie-cast aluminium
  • Material membraneTPE-U(PU)



SKU 150681
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
