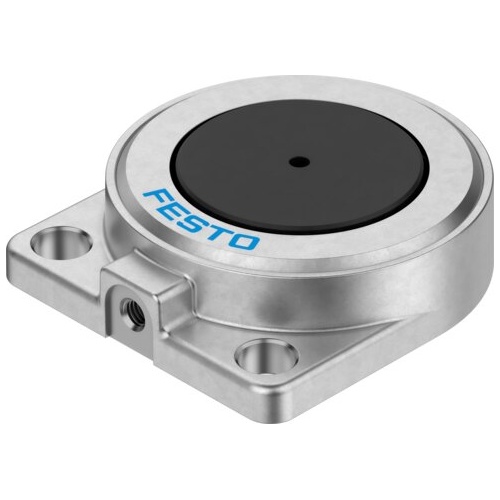

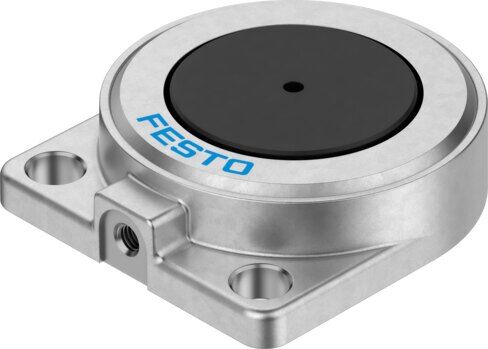

Clamping moduleEV-40-5

184857

GTIN: 4052568004958

Clamping surface
Ø 40
Stroke
5 mm



Technical Data Clamping module EV-40-5

  • Stroke5 mm
  • Clamping surfaceØ 40
  • Mounting positionAny
  • Mode of operationSingle-acting
  • Symbol00991208
  • Operating pressure≤0.6 MPa
  • Operating pressure≤6 bar
  • Operating pressure≤87 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.
  • Ambient temperature-10 °C ... 40 °C
  • Clamping force at 0.6 MPa (6 bar, 87 psi), 1 mm stroke680 N
  • Clamping force at 0.6 MPa (6 bar, 87 psi), max. stroke675 N
  • Product weight52 g
  • Type of mountingWith through-hole
  • Pneumatic connectionM3
  • Material housingDie-cast aluminium
  • Material membraneTPE-U(PU)
SKU 184857
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
