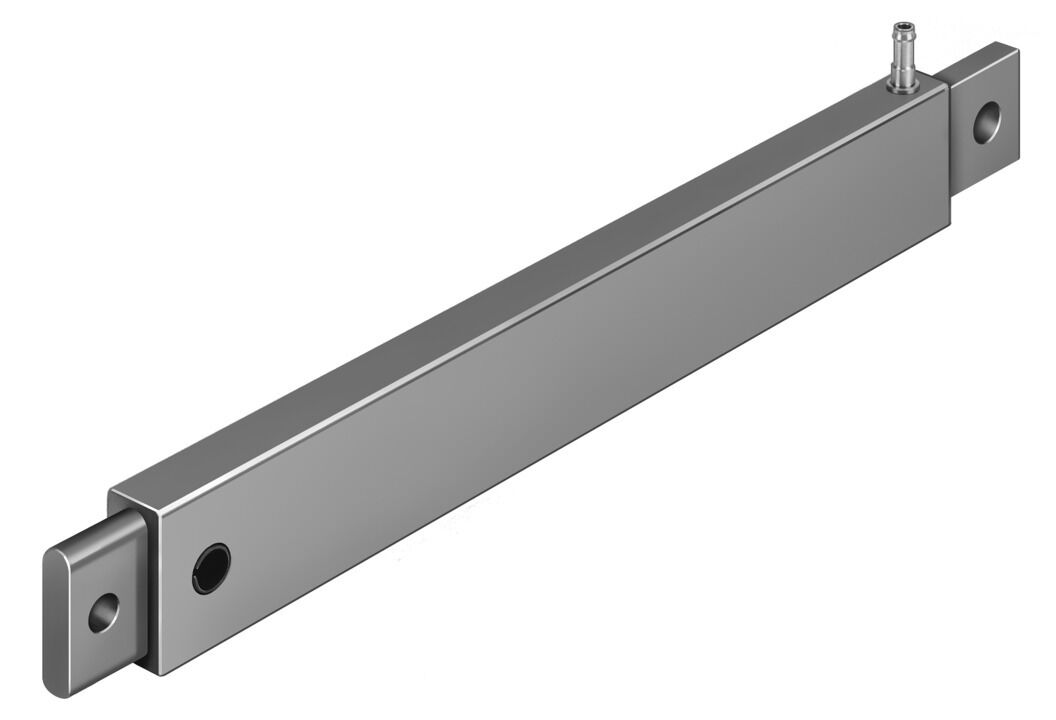

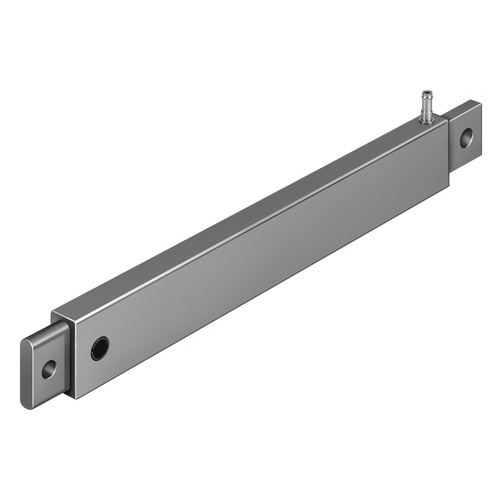

Flat cylinder

EZH-2,5/9-10-B

164991





GTIN: 4052568073633



Mode of operation
Pushing - Single-acting
Piston diameter
6 mm - Equivalent diameter
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
10 N
Stroke
10 mm
Cushioning
No cushioning



Technical Data

  • Stroke10 mm
  • Piston diameter6 mm Equivalent diameter
  • CushioningNo cushioning
  • Mounting positionAny
  • Mode of operationPushing Single-acting
  • DesignPiston Rectangular piston rod
  • Position detectionNone
  • Symbol00991200
  • Protection against torque/guideRectangular piston rod
  • Operating pressure0.28 MPa ... 0.6 MPa
  • Operating pressure2.8 bar ... 6 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature0 °C ... 60 °C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke10 N
  • Theoretical min. spring return force3 N
  • Theoretical max. spring return force4 N
  • Product weight11 g
  • Type of mountingWith cross bore
  • Pneumatic connectionBarbed connector PK-3
  • Material coverAluminium
  • Material sealsNBR
  • Material housingAluminium
  • Material piston rodCopper alloy nickel-plated
SKU 164991
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
