FA1080+ (1080L/S ~ 2288CFM) Med Lab Air Dryer

FA1080+

$47,026.11
Sold Out - Backorder Available

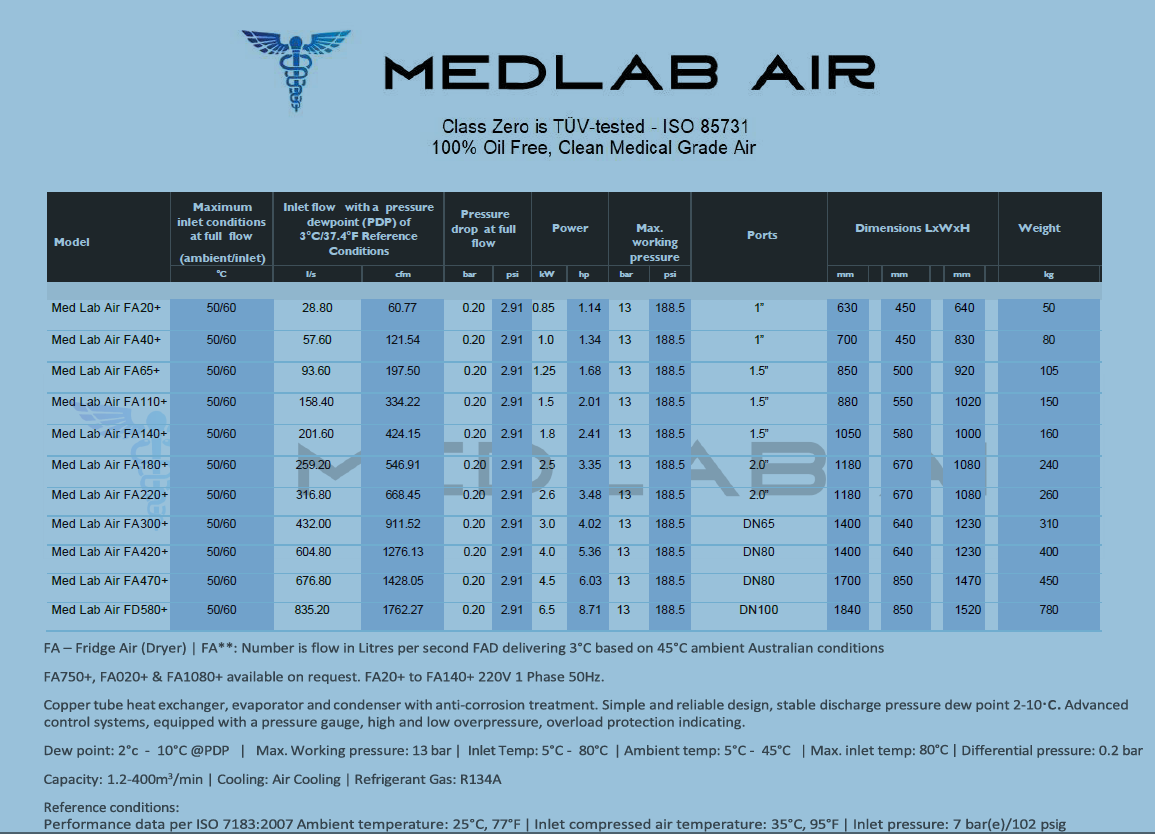

Med Lab Air Dryer Range - Oversized and rated for high Australian ambient conditions

FA – Fridge Air (Dryer) | FA**: Number is flow in Litres per second FAD delivering 3°C based on 45°C ambient Australian conditions

FA20+ to FA140+ 220V 1 Phase 50Hz.

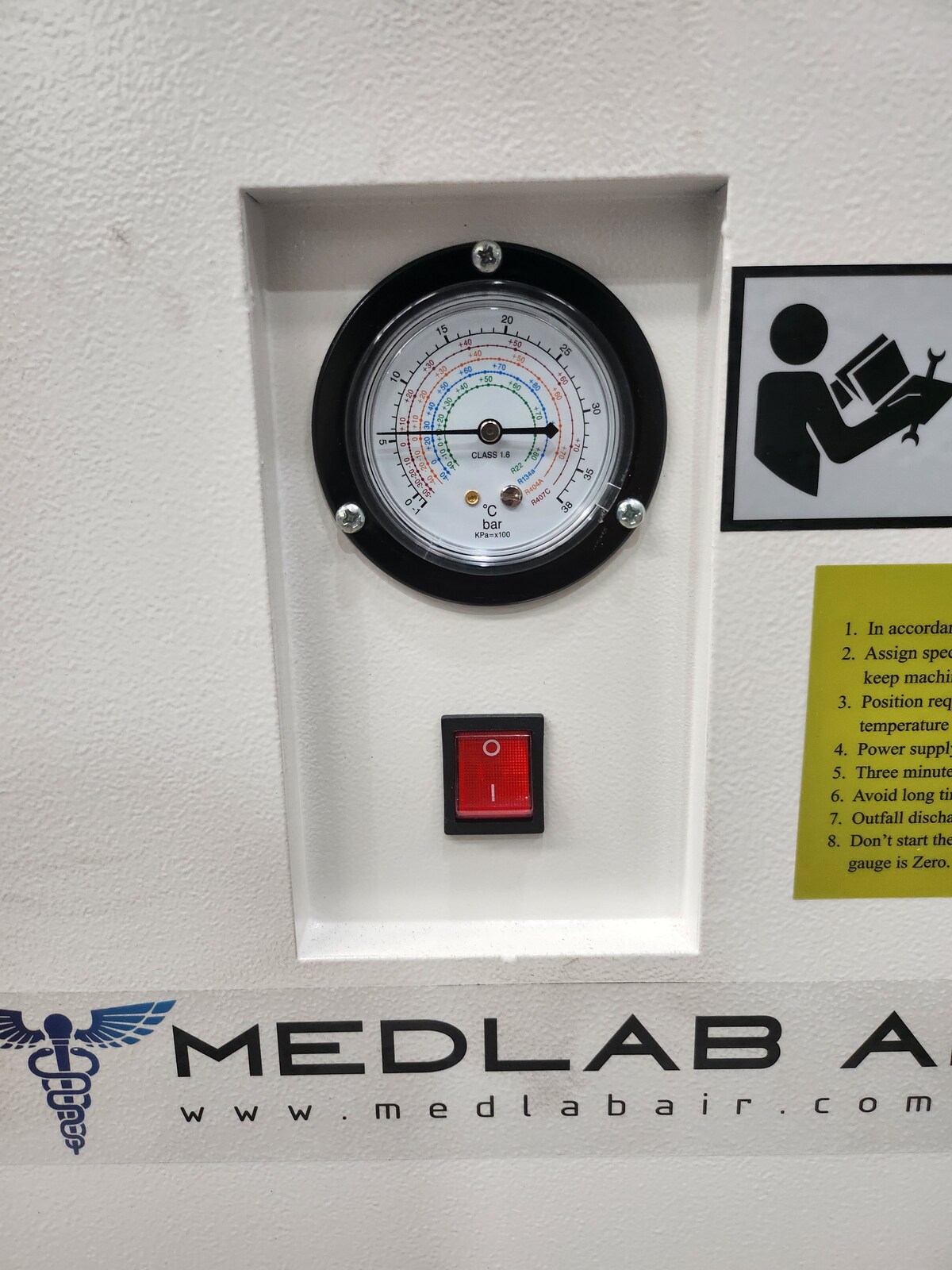

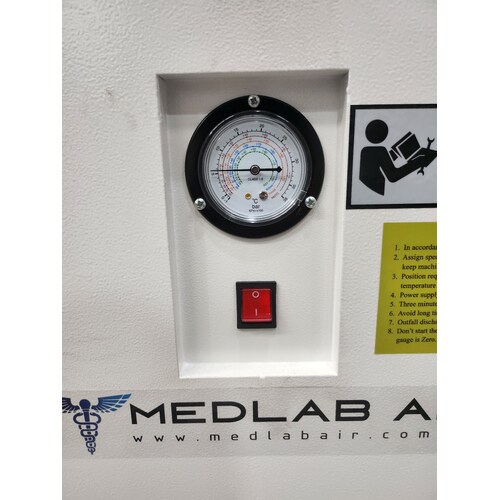

Copper tube heat exchanger, evaporator and condenser with anti-corrosion treatment. Simple and reliable design, stable discharge pressure dew point 2-10·c. Advanced control systems, equipped with a pressure gauge, high and low overpressure, overload protection indicating.

Dew point: 2°c - 10°C @PDP   |   Max. Working pressure: 13 bar |  Inlet Temp: 5°C - 80°C  | Ambient temp: 5°C - 45°C   | Max. inlet temp:            80°C | Differential pressure: 0.2 bar

Capacity: 1.2-400m3/min | Cooling: Air Cooling | Refrigerant Gas: R134A

Reference conditions:

Performance data per ISO 7183:2007 Ambient temperature: 25°C, 77°F | Inlet compressed air temperature: 35°C, 95°F | Inlet pressure: 7 bar(e)/102 psig

(FA1080)

SKU FA1080
Brand Med Lab Air Dryer
Shipping Weight 1.0000kg
Shipping Width 1200.000m
Shipping Height 2700.000m
Shipping Length 1800.000m
