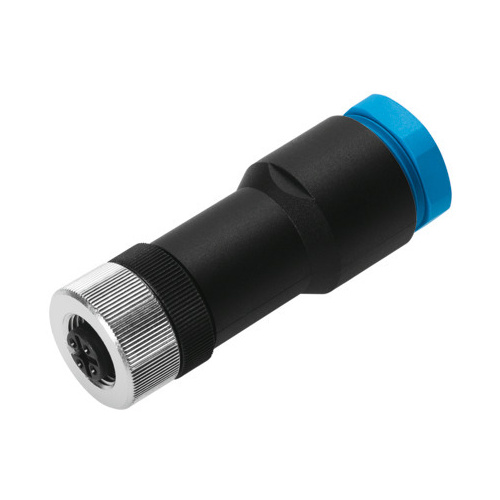

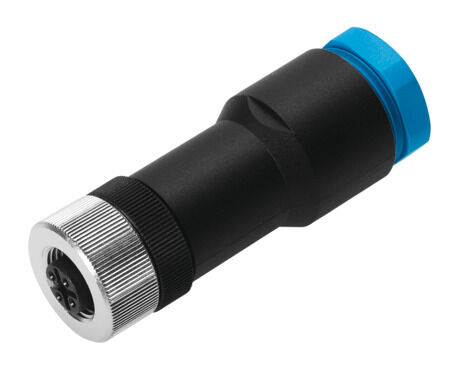

Plug socketFBSD-GD-13,5

18496

GTIN: 4052568022235

Electrical connection
4-pin - Straight socket/screw terminal - Type A - M12x1
Connection cross section
0.75 mm²
Degree of protection
IP67



Technical Data Plug socket FBSD-GD-13,5

  • Based on standardEN 61076-2-101 EN 61984
  • Type of mountingWith union nut
  • Mounting positionAny
  • Product weight40 g
  • Electrical connection4-pin Straight socket/screw terminal Type A M12x1
  • Operational voltage range DC≤250 V
  • Operational voltage range AC≤250 V
  • Current rating at 40° C4 A
  • Immunity to surge2.5 kV
  • Cable fittingPg13.5
  • Permissible cable diameter10 mm ... 12 mm
  • Connection cross section0.75 mm²
  • Degree of protectionIP67
  • Ambient temperature-40 °C ... 85 °C
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Pollution degree3
  • Corrosion resistance class CRC1 - Low corrosion stress
  • Material housingReinforced PA
  • Housing colourBlack
  • Material union nutDie-cast zinc nickel-plated
  • Material electrical contactBronze Coated white bronze
SKU 18496
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
