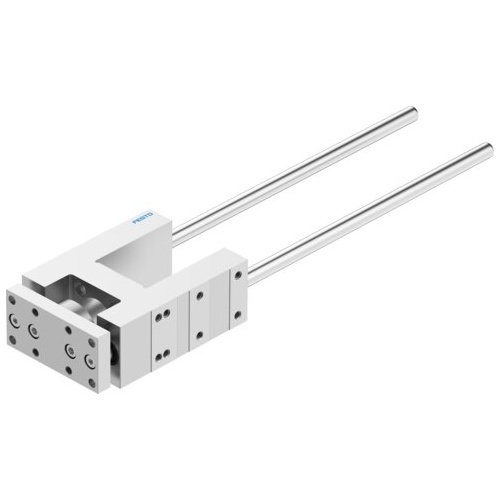

Guide unit

FENG-32-250-KF

150289





GTIN: 4052568004279

Technical Data

  • Size32
  • Stroke250 mm
  • Mounting positionoptional
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Explosion protectionThe information in the certificate must be observed!
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Max. force Fy750 N
  • Max. force Fy static1020 N
  • Max. force Fz750 N
  • Max. force Fz static1020 N
  • Max. moment Mx28 Nm
  • Max. torque Mx static38 Nm
  • Max. moment My34 Nm
  • Max. torque My static46 Nm
  • Max. moment Mz34 Nm
  • Max. torque Mz static46 Nm
  • Displacement force15 N
  • Product weight1980 g
  • Type of mountingVia female thread
  • Note on materialsRoHS-compliant
  • Material guide componentTempered steel
  • Material housingAnodised wrought aluminium alloy
  • Material yoke plateAnodised wrought aluminium alloy





SKU 150289
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
