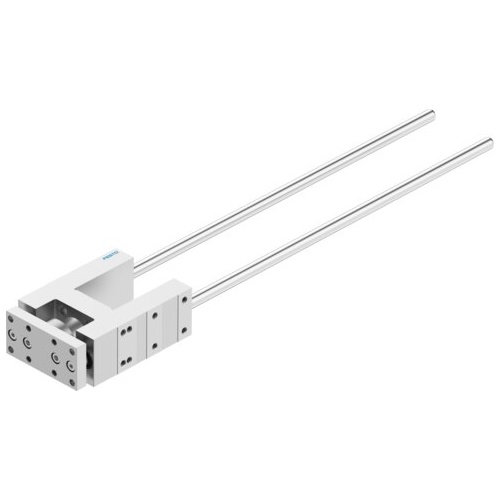

Guide unit

FENG-40-400-KF

150291





GTIN: 4052568116484

FESTO FENG-40-400-KF Guide unit 150291

Technical Data

  • Size40
  • Stroke400 mm
  • Mounting positionoptional
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Explosion protectionThe information in the certificate must be observed!
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Max. force Fy1000 N
  • Max. force Fy static1260 N
  • Max. force Fz1000 N
  • Max. force Fz static1260 N
  • Max. moment Mx44 Nm
  • Max. torque Mx static55 Nm
  • Max. moment My52 Nm
  • Max. torque My static65 Nm
  • Max. moment Mz52 Nm
  • Max. torque Mz static65 Nm
  • Displacement force15 N
  • Product weight3650 g
  • Type of mountingVia female thread
  • Note on materialsRoHS-compliant
  • Material guide componentTempered steel
  • Material housingAnodised wrought aluminium alloy
  • Material yoke plateAnodised wrought aluminium alloy





SKU 150291
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
