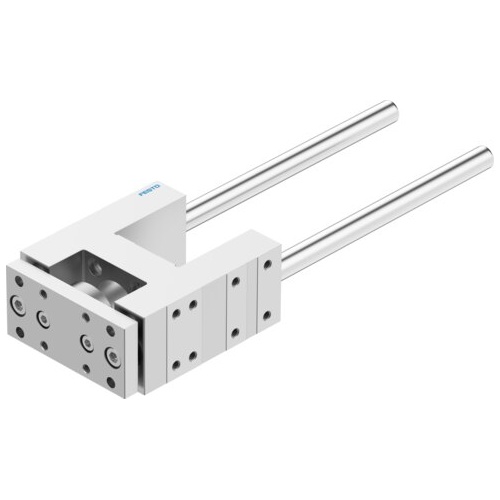

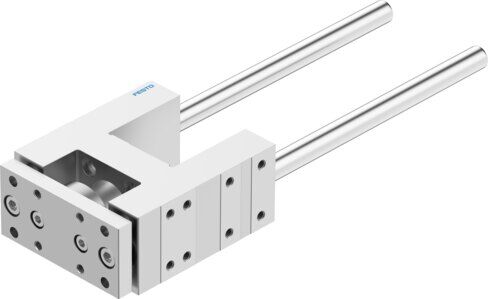

Guide unit

FENG-50-400-KF

150292





GTIN: 4052568116491

Technical Data

  • Size50
  • Stroke400 mm
  • Mounting positionoptional
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Explosion protectionThe information in the certificate must be observed!
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Max. force Fy1260 N
  • Max. force Fy static1600 N
  • Max. force Fz1260 N
  • Max. force Fz static1600 N
  • Max. moment Mx65 Nm
  • Max. torque Mx static83 Nm
  • Max. moment My70 Nm
  • Max. torque My static89 Nm
  • Max. moment Mz70 Nm
  • Max. torque Mz static89 Nm
  • Displacement force15 N
  • Product weight5990 g
  • Type of mountingVia female thread
  • Note on materialsRoHS-compliant
  • Material guide componentTempered steel
  • Material housingAnodised wrought aluminium alloy
  • Material yoke plateAnodised wrought aluminium alloy





SKU 150292
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
