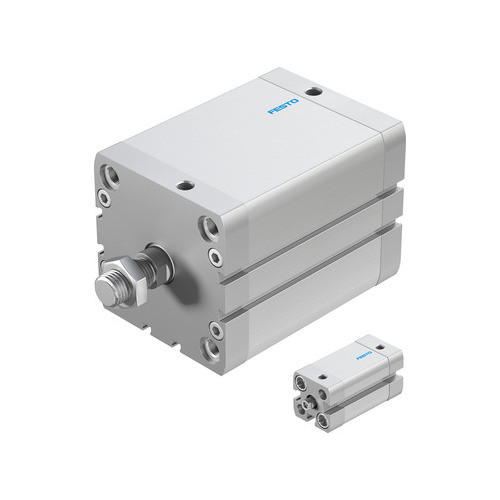

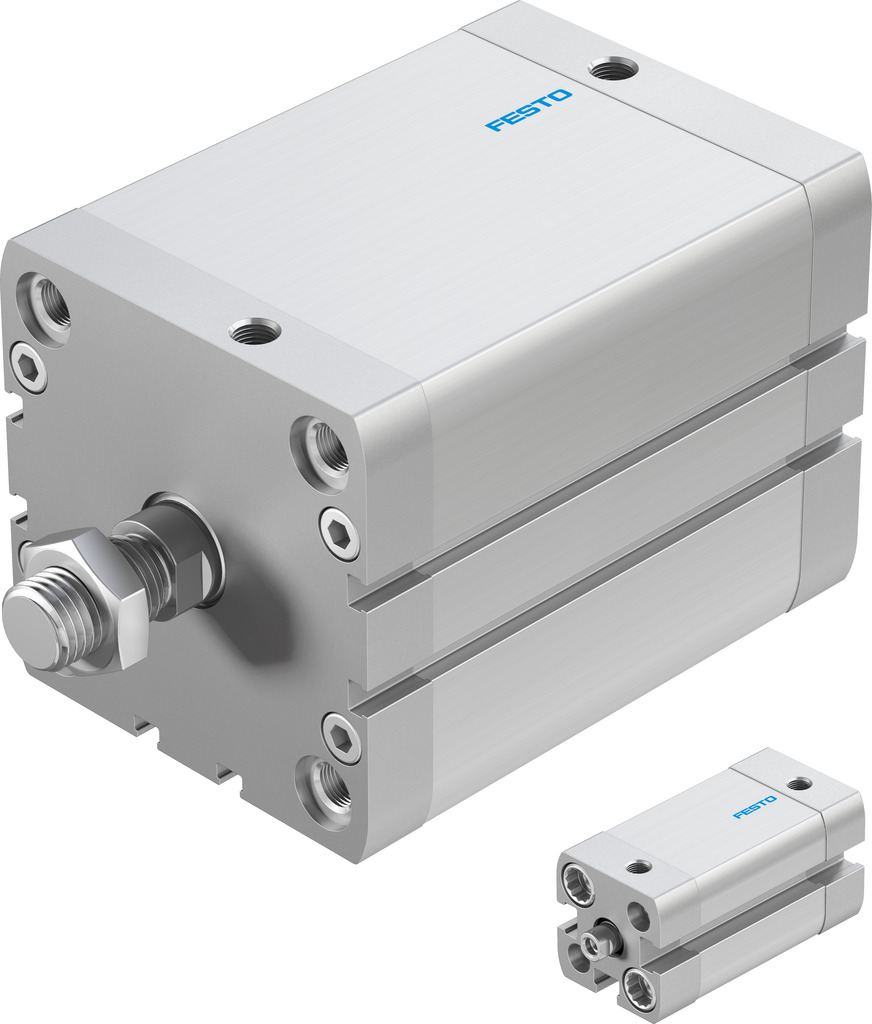

Compact cylinder

ADN-63-150-A-P-A

536330

ADN-63-150-A-P-A

Technical Data

• Stroke1 mm ... 400 mm
• Piston diameter63 mm
• CushioningElastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning
• Mounting positionoptional
• Conforms to standardISO 21287
• DesignPiston Piston rod Profile barrel
• Position detectionVia proximity switch
• VariantsAdvancing stroke adjustment Stroke adjustment advancing/at front Weld spatter protection Piston rod with female thread Piston rod with external hexagon Module for reaching a specific end position in case of a pressure failure Transverse load increased High corrosion protection Dust protection Reinforced piston rod Uniform, slow movement Low friction Through piston rod Through, hollow piston rod Temperature range 0 to 150°C Temperature range -40 to 80°C Additional PTFE piston guide
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Mode of operationDouble-acting
• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
• UKCA marking (see declaration of conformity)To UK EX instructions
• Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
• Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
• ATEX category gasII 2G
• ATEX category dustII 2D
• Explosion ignition protection type for gasEx h IIC T4 Gb
• Explosion ignition protection type for dustEx h IIIC T120°C Db
• Explosion ambient temperature-20°C <= Ta <= +60°C
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC0 - No corrosion stress 2 - Moderate corrosion stress 3 - high corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III
• Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Ambient temperature-40 °C ... 120 °C
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1750 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1750 N ... 1870 N
• Additional weight per piston rod extension of 10 mm16 g
• Additional weight per piston rod thread extension of 10 mm9 g
• Type of mountingWith through-hole Via female thread With accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material collar screwsSteel
• Material coverAnodised wrought aluminium alloy
• Material piston rodHigh-alloy steel
• Material cylinder barrelSmooth-anodised wrought aluminium alloy

Repair Kit: Search 673626
