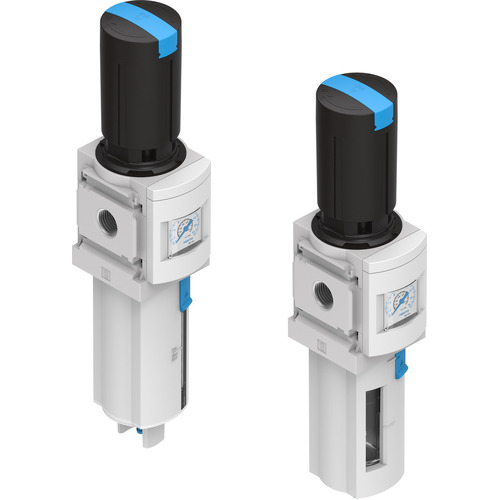

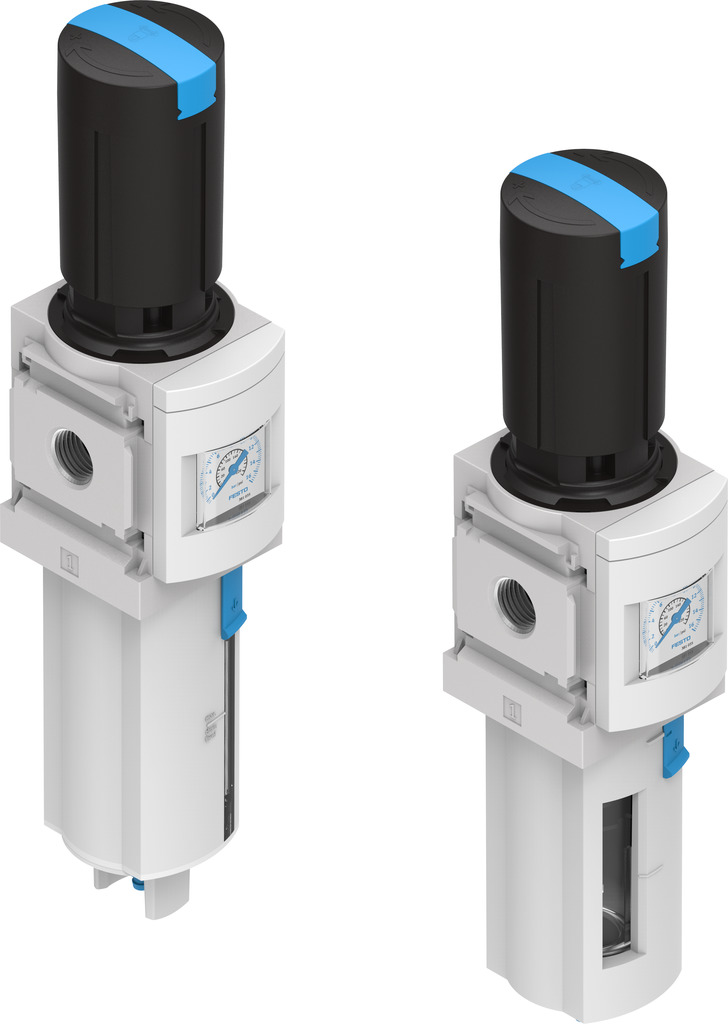

Filter regulator

MS6-LFR

526490

Downloads

MS-LFR_EN.PDF

Technical data

Reliability datasheet

CAD data

Links

Spare parts

Technical Data

• Size 6
• Series MS
• Actuator lock Rotary knob with detent Rotary knob with integrated lock can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm ... 40 µm
• Condensate drain Fully automatic Manual, non-detenting Manually rotating Semi-automatic
• Design Filter regulator with pressure gauge Filter regulator without pressure gauge
• Controller function Output pressure constant With secondary venting With return flow function
• Bowl guard Plastic bowl guard Integrated as metal bowl
• Degree of condensate separation>75 %
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4 Prepared for G1/8 Via pressure sensor With pressure gauge
• Operating pressure 0.08 MPa ... 2 MPa
• Operating pressure 0.8 bar ... 20 bar
• Pressure regulation range 0.3 bar ... 16 bar
• Max. pressure hysteresis 0.025 MPa
• Max. pressure hysteresis 0.25 bar
• Max. pressure hysteresis 3.625 psi
• Standard nominal flow rate (standardised to DIN 1343) 2000 l/min ... 7200 l/min
• Approvalc UL us - Recognized (OL)
• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
• CE marking (see declaration of conformity)To UK EX instructions
• Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
• Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
• ATEX category gasII 2G
• ATEX category dustII 2D
• Explosion ignition protection type for gasEx h IIC T6 Gb X
• Explosion ignition protection type for dustEx h IIIC T60°C Db X
• Explosion ambient temperature-10°C <= Ta <= +60°C
• Operating mediumCompressed air to ISO 8573-1:2010 [-:4:-] Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Suitable for use with food See supplementary material information
• Media temperature -10 °C ... 60 °C
• Ambient temperature -10 °C ... 60 °C
• Type of mounting Either: Front panel mounting In-line installation With accessories
• Note on materials RoHS-compliant
• Material seals NBR
• Material filter PE
• Material housing Die-cast aluminium
• Material membrane NBR
• Material separating plate POM
