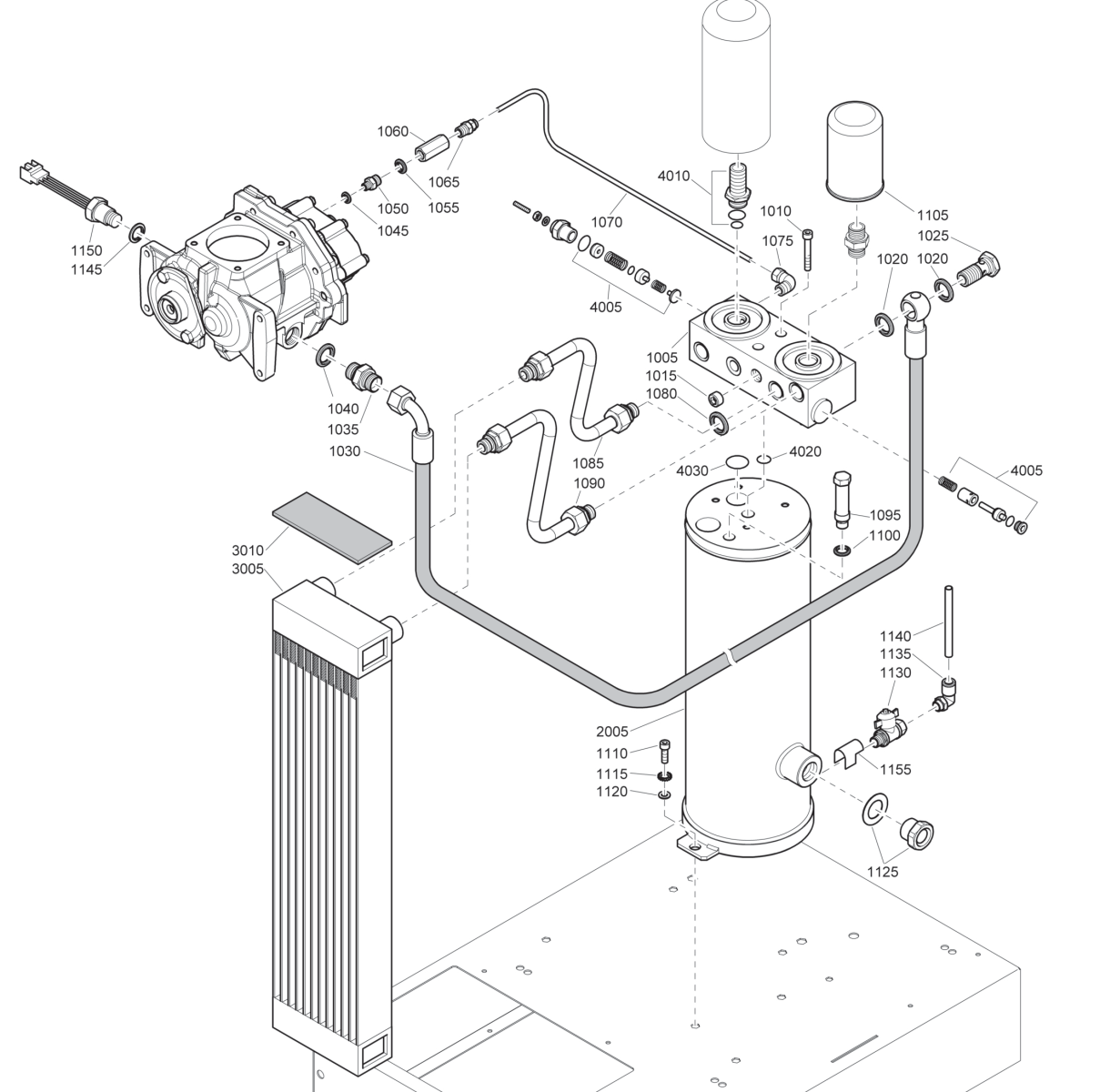

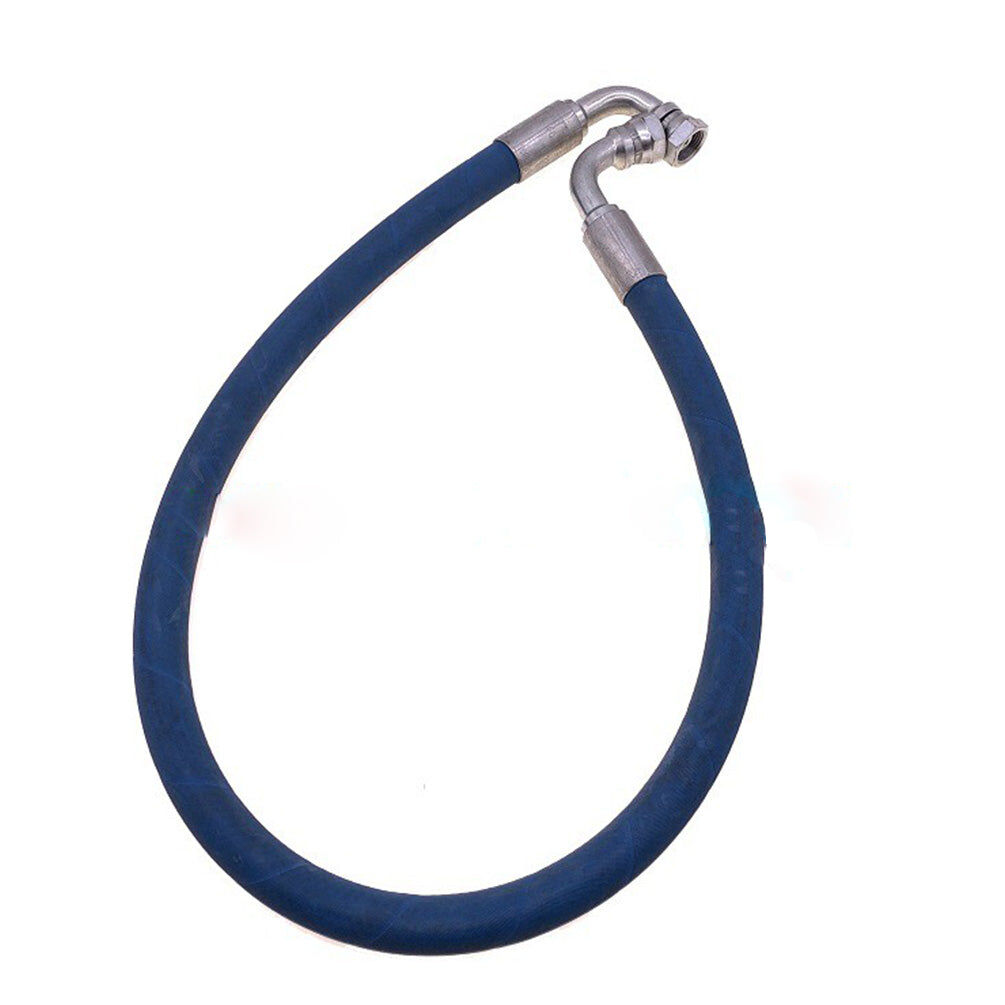

FLEXIBLE HOSE

1005 1 Valve housing
2202 7055 01 Basic version
2202 7055 02 Tropical version
1010 0211 1963 78 4 Screw
1015 0686 3115 55 1 Plug
1020 0661 1000 39 2 Seal washer
1025 0627 5100 05 1 Pressure screw
1030 2202 7050 02 1 Flexible
1035 0571 0035 76 1 Nipple
1040 0661 1000 39 1 Seal washer
1045 0661 1000 42 1 Seal washer
1050 2200 7514 34 1 Nipple
1055 0661 1000 38 1 Seal washer
1060 0823 0050 09 1 Non return valve
1065 0583 8181 18 1 Coupling
1070 0070 6002 48 AR Plastic tube
1075 9740 2004 32 1 Elbow coupling
1080 0661 1000 39 1 Seal washer
1085 2202 8285 00 1 Pipe
1090 2202 8274 00 1 Pipe
1095 2202 2608 45 1 Plug
1100 0661 1000 40 1 Seal washer

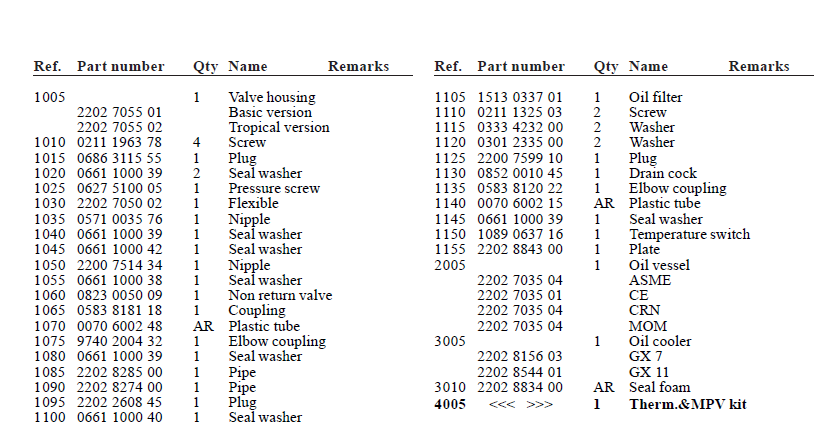

Ref. Part number Qty Name Remarks
1105 1513 0337 01 1 Oil filter
1110 0211 1325 03 2 Screw
1115 0333 4232 00 2 Washer
1120 0301 2335 00 2 Washer
1125 2200 7599 10 1 Plug
1130 0852 0010 45 1 Drain cock
1135 0583 8120 22 1 Elbow coupling
1140 0070 6002 15 AR Plastic tube
1145 0661 1000 39 1 Seal washer
1150 1089 0637 16 1 Temperature switch
1155 2202 8843 00 1 Plate
2005 1 Oil vessel
2202 7035 04 ASME
2202 7035 01 CE
2202 7035 04 CRN
2202 7035 04 MOM
3005 1 Oil cooler
2202 8156 03 GX 7
2202 8544 01 GX 11
3010 2202 8834 00 AR Seal foam
4005 <<< >>> 1 Therm.&MPV kit

SKU 2202705002
Model # 7445 7556 00
Brand Atlas Copco
Shipping Weight 0.0500kg
Shipping Width 0.010m
Shipping Height 0.040m
Shipping Length 0.050m
Shipping Cubic 0.000020000m3
