●Easy to lock push-lock type
●Larger knob
●Improved tube insertion/removal
  Insertion force: Max. 30% (8 N) reduction
  Removal force: Max. 20% (5 N) reduction*
  * Tube removal strength is ensured to be equivalent to the previous model.
●Electroless nickel plated type is standard.
●360° swivel piping is possible. (Universal type)
●Available with a restrictor (Made to order: -X214, -X21)
●Large flow type (-X778)

Specifications

Body SizeM5X0.8,10-32UNF
TypeElbow
Control TypeMeter-out
Port SizeM5X0.8
Width Across Flats (H)9 mm
Applicable Tubing O.D.Φ4 mm
Made To OrderStandard

Datasheet (PDF)

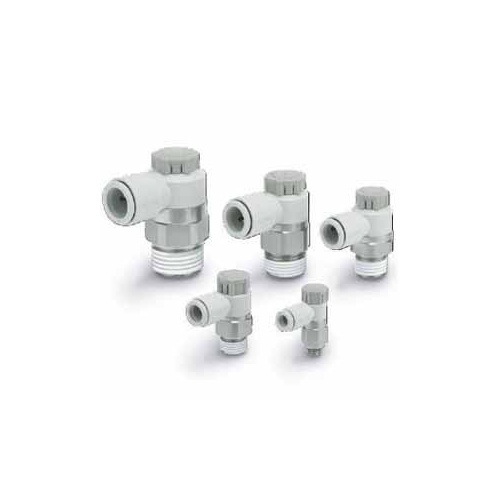

SKU AS1201F-M5-04A
Brand SMC
