●Applicable fluid: Air, N2、Ar、CO2 [New]
●500 L/4000 L/8000 L types have been added to the modular type. [New]
●The display range has been expanded. (1.5 times the rated flow range) [New]
●Accumulated pulse conversion value: Select from 4 types based on the flow range [New]
●Accumulated pulse width: Select a setting between 50 to 100 ms [New]
●A wide range of flow measurement is possible with 1 product.
●Supports the IO-Link communication protocol

Specifications

TypeIntegrated Display
Rated Flow Range (Flow Range)60 To 6000 L/min
Flow TypeLarge Flow Type
Thread TypeRc
Port Size1 1/2
Output SpecificationsOUT:PNP;FUNC:Analog Current Output External Input
OptionWith Lead Wire And M12 Connector (3 m)
Remote Sensor UnitUnits Selection Function
Calibration CertificateNone

Datasheet (PDF)

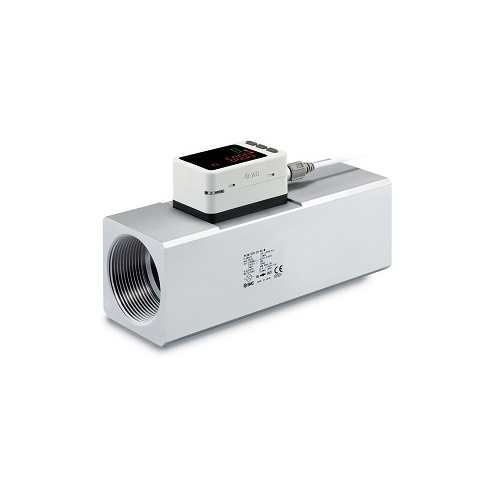

SKU PF3A706H-14-FS
Brand SMC
Shipping Weight 6.0000kg
Shipping Width 0.300m
Shipping Height 0.250m
Shipping Length 0.300m
