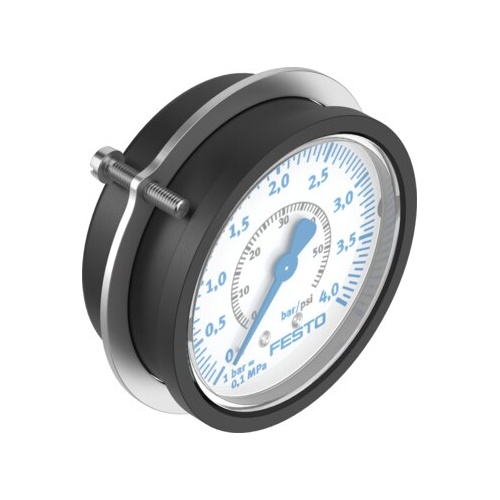

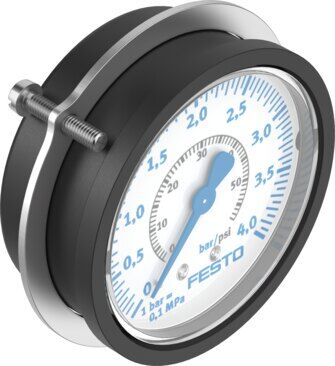

Flanged precision pressure gauge

FMAP-63-4-1/4-EN

162843





GTIN: 4052568072643

Type of mounting
Front panel mounting
Indicating range
0 bar - 4 bar
Pneumatic connection
G1/4
Measurement accuracy class
1

Technical Data

  • Indicating range0 bar ... 4 bar
  • Indicating range1 psi ... 58 psi
  • Symbol00991463
  • Conforms to standardEN 837-1
  • Nominal size of pressure gauge63
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • DesignBourdon tube pressure gauge
  • Type of mountingFront panel mounting
  • Operating mediumInert gas Neutral fluids
  • Note on operating and pilot mediumNo acetylene No oxygen
  • Operating pressure0 MPa ... 0.4 MPa
  • Operating pressure0 bar ... 4 bar
  • Operating pressure0 psi ... 58 psi
  • Alternating load factor0.66
  • Measurement accuracy class1
  • Degree of protectionIP43
  • Media temperature-20 °C ... 60 °C
  • Ambient temperature-20 °C ... 60 °C
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Note on materialsRoHS compliant
  • Position of connectionCentred, rear
  • Pneumatic connectionG1/4
  • Material in contact with the mediumBrass
  • Material screwed plugBrass
  • Material housingABS
  • Material screenSAN
  • Material mounting ringSteel
  • Housing colourBlack
  • Product weight120 g
  • ScaleDouble scale Bar (external) psi (inner scale)



SKU 162843
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
