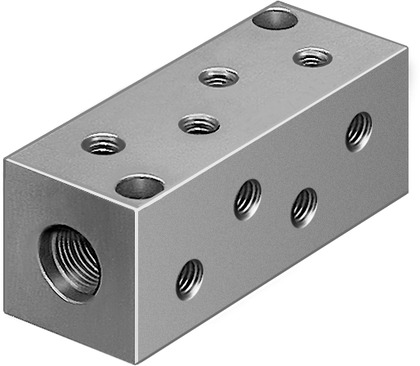

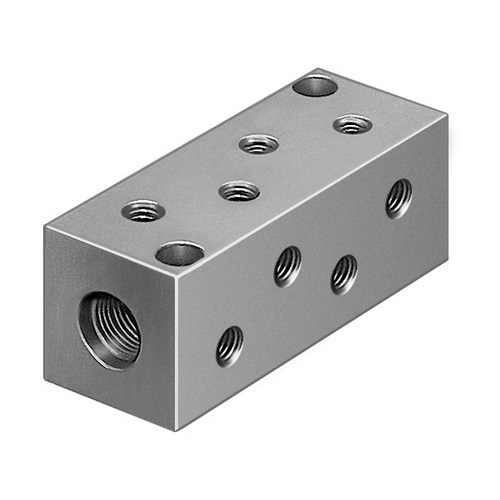

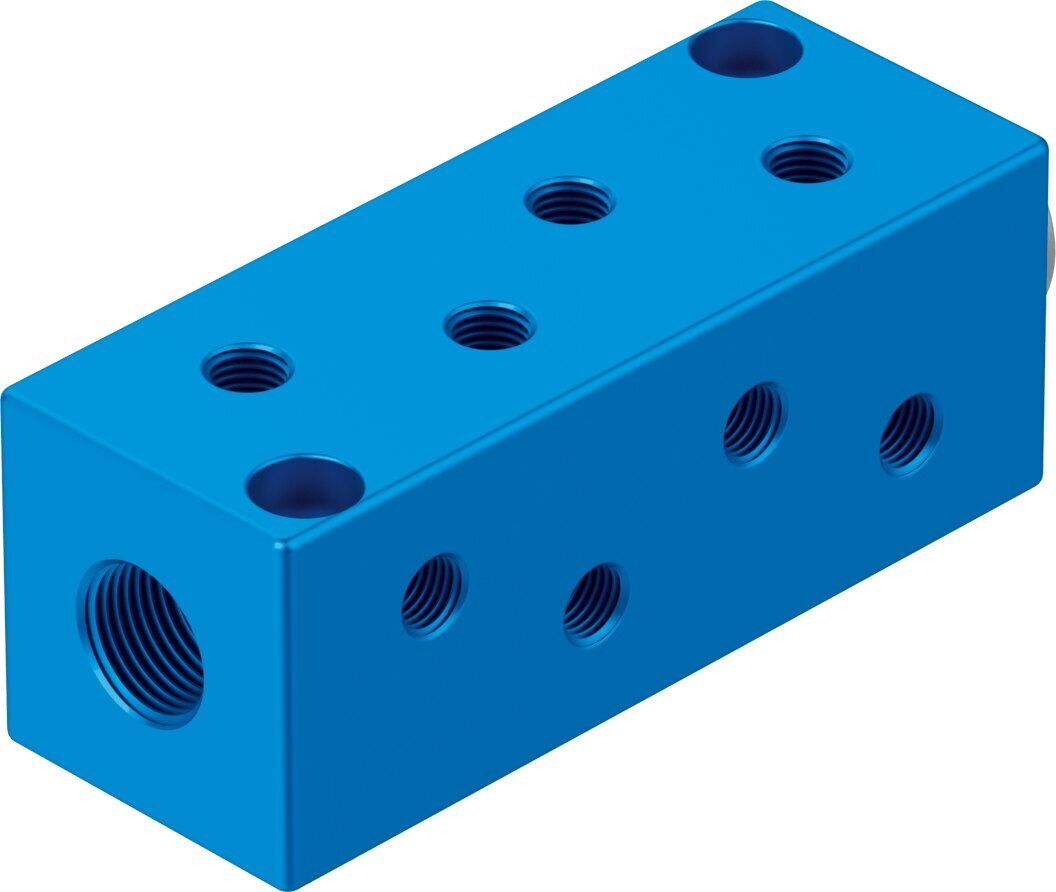

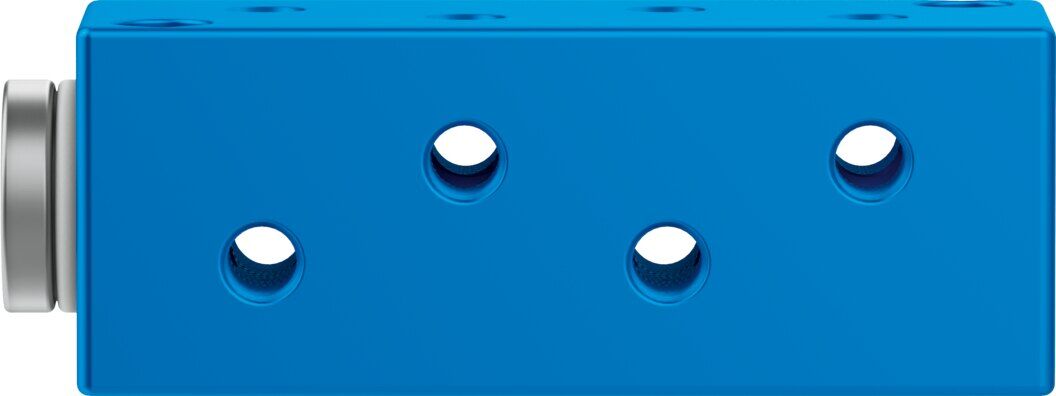

Distributor block

FR-12-M5

4525



Pneumatic connection, port 1
Female thread G1/8
Pneumatic connection, port 2
Female thread M5
Number of supply lines
1
Number of outputs
12

GTIN: 4052568064471

Technical Data

  • Nominal size4.1 mm
  • Mounting positionoptional
  • Operating pressure complete temperature range0 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque3.5 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight40 g
  • Number of outputs12
  • Number of supply lines1
  • Pneumatic connection, port 1Female thread G1/8
  • Pneumatic connection, port 2Female thread M5
  • Note on materialsRoHS-compliant
  • Material housingAluminium Anodised

Downloads

DISTRIBUTOR-FR_EN.PDF

Technical data

Links

Spare parts

Pneumatic connection, port 1 - Female thread G1/8

Pneumatic connection, port 2 - Female thread M5

Number of supply lines - 1

Number of outputs - 12

Distributor block
SKU 4525
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
