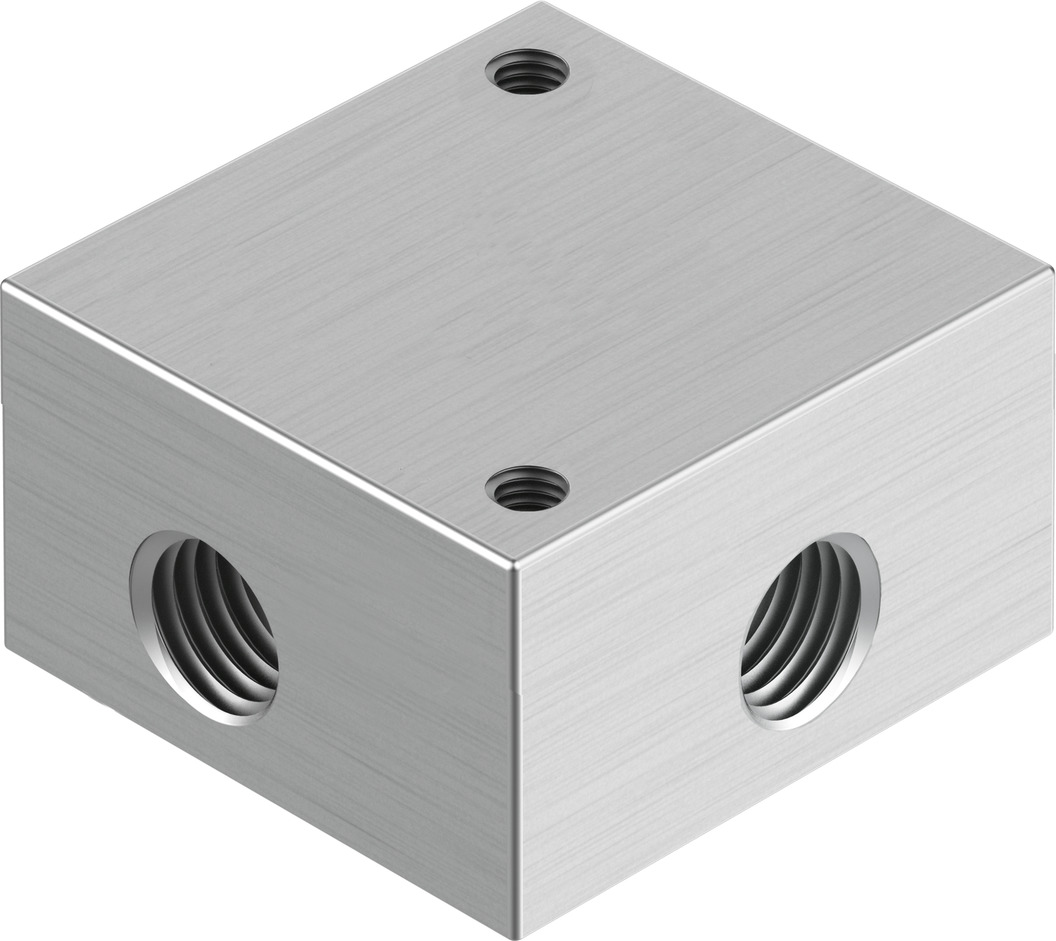

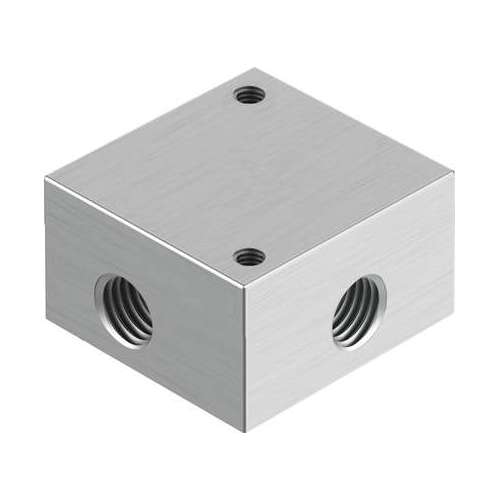

Distributor block (x10 pack)

FR-4-1/4

2960

Pneumatic connection, port 1
Female thread G1/4
Pneumatic connection, port 2
Female thread G1/4
Number of supply lines
1
Number of outputs
3

GTIN: 4052568018184

Technical Data

  • Nominal size11.5 mm
  • Mounting positionoptional
  • Operating pressure complete temperature range0 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 80 °C
  • Product weight68 g
  • Number of outputs3
  • Number of supply lines1
  • Pneumatic connection, port 1Female thread G1/4
  • Pneumatic connection, port 2Female thread G1/4
  • Note on materialsRoHS-compliant
  • Material housingAluminium Anodised

DISTRIBUTOR-FR_EN.PDF

CAD data

Spare parts

Product Documentation

Technical data

Distributor block

SKU 2960
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
