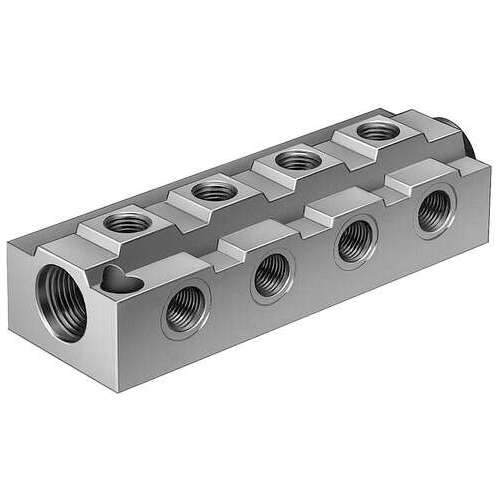

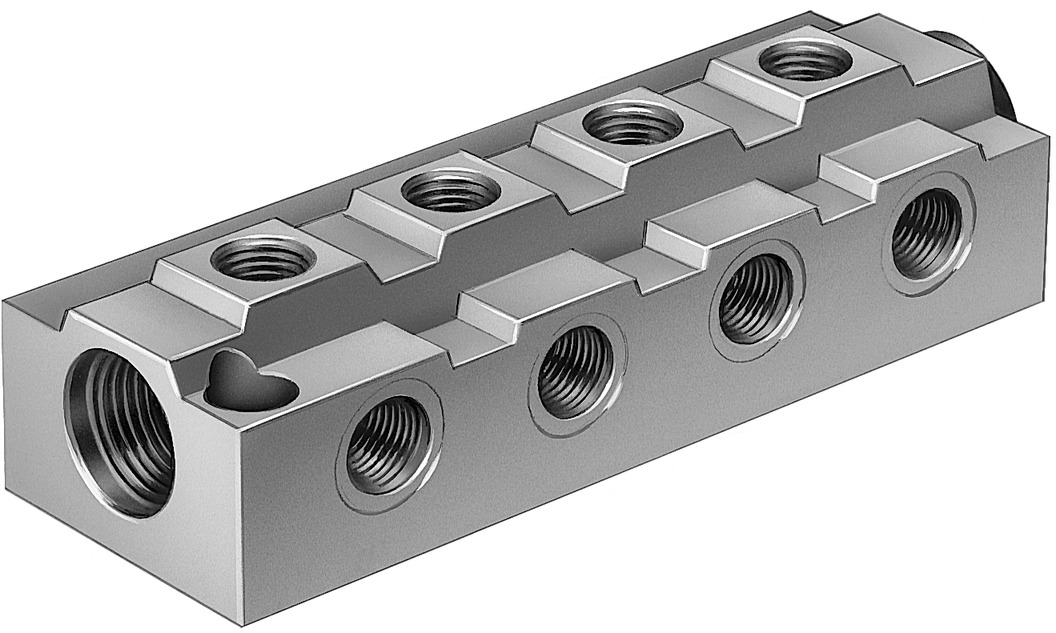

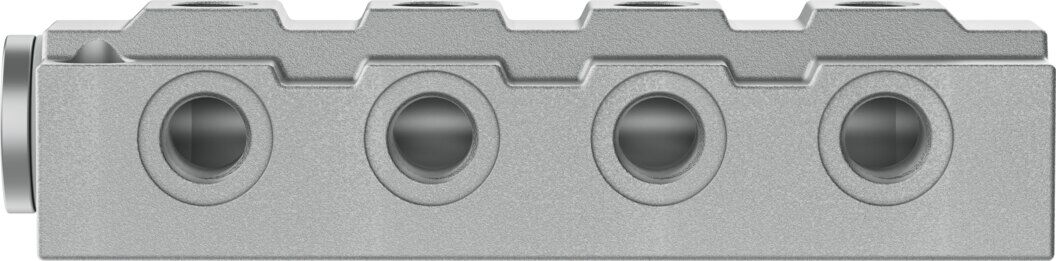

Distributor block

FR-8-1/4

2078

Pneumatic connection, port 1
Female thread G1/2
Pneumatic connection, port 2
Female thread G1/4
Number of supply lines
1
Number of outputs
8


GTIN: 4052568000059

Technical Data

  • Nominal size11.5 mm
  • Mounting positionoptional
  • Operating pressure complete temperature range0 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque14 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight230 g
  • Number of outputs8
  • Number of supply lines1
  • Pneumatic connection, port 1Female thread G1/2
  • Pneumatic connection, port 2Female thread G1/4
  • Note on materialsRoHS-compliant
  • Material housingDie-cast aluminium

DISTRIBUTOR-FR_EN.PDF

Distributor block

SKU 2078
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
