Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

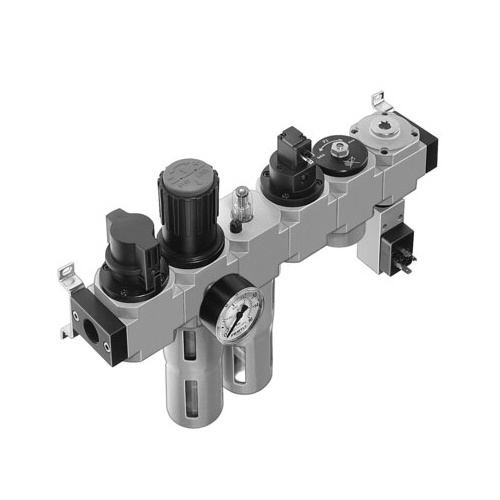

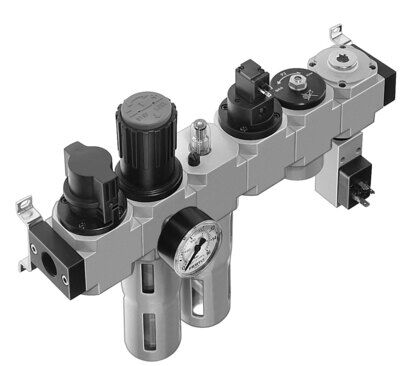

Service unit combination FRC-1/8-D-MINI-KF

185839

GTIN: 4052568145972

Technical Data Service unit combination FRC-1/8-D-MINI-KF

  • SizeMini
  • SeriesD
  • Actuator lockRotary knob with detent
  • Mounting positionVertical +/-5°
  • Grade of filtration40 µm
  • Condensate drainManual, rotating
  • DesignProportional standard mist lubricator Safety start-up valve
  • Max. condensate volume22 ml
  • Bowl guardMetal bowl guard

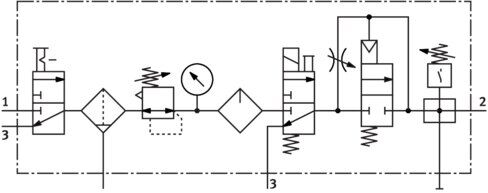

  • Symbol00991563
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.3 MPa ... 1.6 MPa
  • Operating pressure3 bar ... 16 bar
  • Operating pressure43.5 psi ... 232 psi
  • Pressure regulation range0.25 MPa ... 1.2 MPa
  • Pressure regulation range2.5 bar ... 12 bar
  • Pressure regulation range36.25 psi ... 174 psi
  • Max. pressure hysteresis0.02 MPa
  • Max. pressure hysteresis0.2 bar
  • Max. pressure hysteresis2.9 psi
  • Standard nominal flow rate (standardised to DIN 1343)530 l/min
  • Operating mediumInert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:-] Inert gas
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight1800 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Material housingDie-cast zinc
  • Material bowlMakrolon®







SKU 185839
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
