2906 0222 00 GEARBOX OVERHAUL KIT.

GEARBOX OVERHAUL KIT.

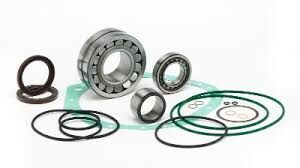

2906 0222 00 Gearbox overhaul kit
0211 1407 00 • 10 Screw
0506 0100 08 • 1 Bearing
0506 5109 00 • 1 Bearing
0661 1000 25 • 1 Seal washer
0661 1000 27 • 4 Seal washer
0661 1000 29 • 2 Seal washer
0661 1359 00 • 1 Seal washer
0663 3117 00 • 2 O-ring
0663 2107 76 • 1 O-ring
0663 7177 00 • 1 O-ring
1202 7011 00 • 1 Gasket
1619 5177 00 • 2 Seal ring
2252 5478 00 • 1 Bushing

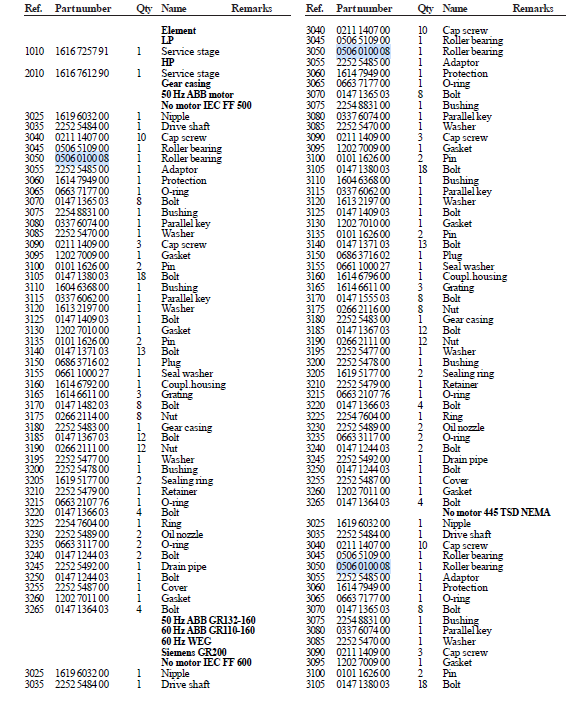

Ref. Part number Qty Name Remarks
Element
LP
1010 1616 7257 91 1 Service stage
HP
2010 1616 7612 90 1 Service stage

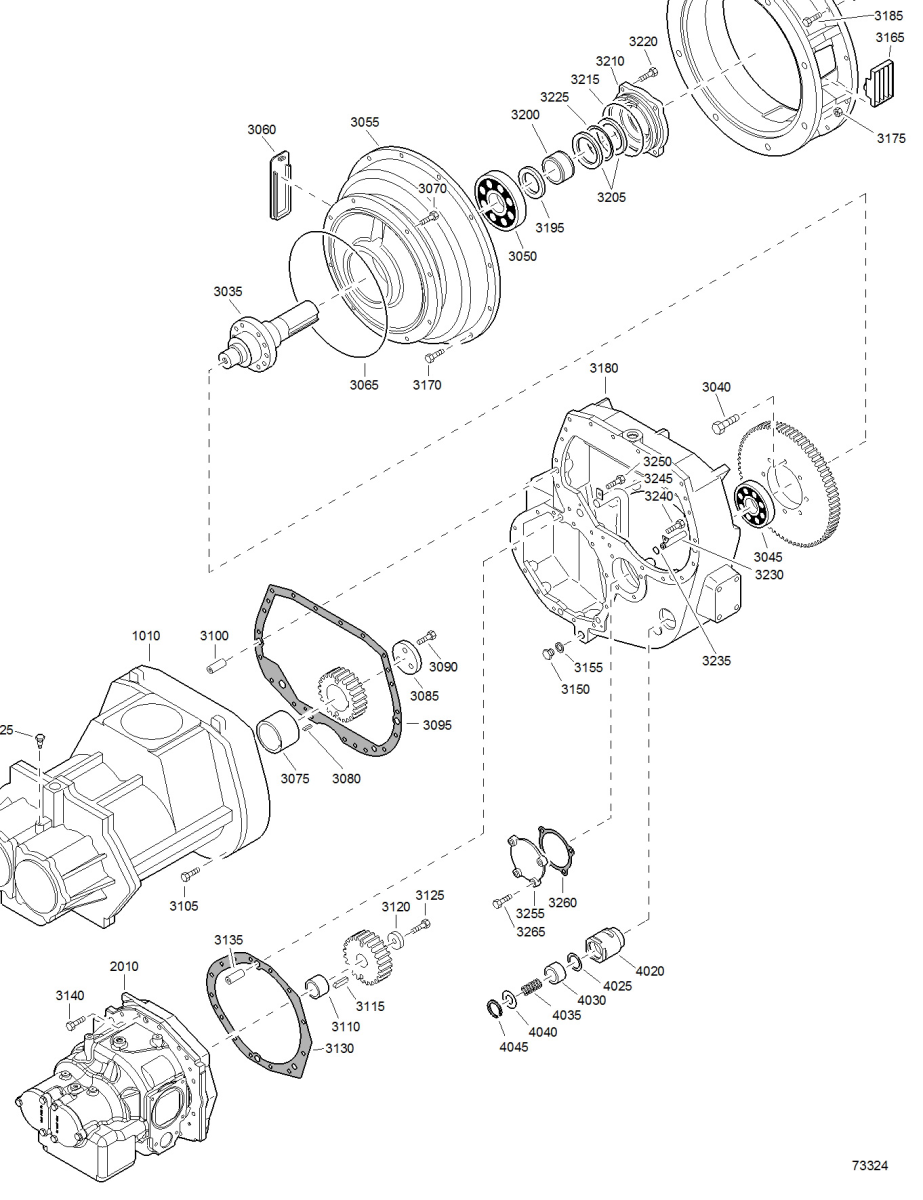

Gear casing
50 Hz ABB motor
No motor IEC FF 500
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6792 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1482 03 8 Bolt
3175 0266 2114 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
50 Hz ABB GR132-160
60 Hz ABB GR110-160
60 Hz WEG
Siemens GR200
No motor IEC FF 600
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
Ref. Part number Qty Name Remarks
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
3110 1604 6368 00 1 Bushing
3115 0337 6062 00 1 Parallel key
3120 1613 2197 00 1 Washer
3125 0147 1409 03 1 Bolt
3130 1202 7010 00 1 Gasket
3135 0101 1626 00 2 Pin
3140 0147 1371 03 13 Bolt
3150 0686 3716 02 1 Plug
3155 0661 1000 27 1 Seal washer
3160 1614 6796 00 1 Coupl.housing
3165 1614 6611 00 3 Grating
3170 0147 1555 03 8 Bolt
3175 0266 2116 00 8 Nut
3180 2252 5483 00 1 Gear casing
3185 0147 1367 03 12 Bolt
3190 0266 2111 00 12 Nut
3195 2252 5477 00 1 Washer
3200 2252 5478 00 1 Bushing
3205 1619 5177 00 2 Sealing ring
3210 2252 5479 00 1 Retainer
3215 0663 2107 76 1 O-ring
3220 0147 1366 03 4 Bolt
3225 2254 7604 00 1 Ring
3230 2252 5489 00 2 Oil nozzle
3235 0663 3117 00 2 O-ring
3240 0147 1244 03 2 Bolt
3245 2252 5492 00 1 Drain pipe
3250 0147 1244 03 1 Bolt
3255 2252 5487 00 1 Cover
3260 1202 7011 00 1 Gasket
3265 0147 1364 03 4 Bolt
No motor 445 TSD NEMA
3025 1619 6032 00 1 Nipple
3035 2252 5484 00 1 Drive shaft
3040 0211 1407 00 10 Cap screw
3045 0506 5109 00 1 Roller bearing
3050 0506 0100 08 1 Roller bearing
3055 2252 5485 00 1 Adaptor
3060 1614 7949 00 1 Protection
3065 0663 7177 00 1 O-ring
3070 0147 1365 03 8 Bolt
3075 2254 8831 00 1 Bushing
3080 0337 6074 00 1 Parallel key
3085 2252 5470 00 1 Washer
3090 0211 1409 00 3 Cap screw
3095 1202 7009 00 1 Gasket
3100 0101 1626 00 2 Pin
3105 0147 1380 03 18 Bolt
