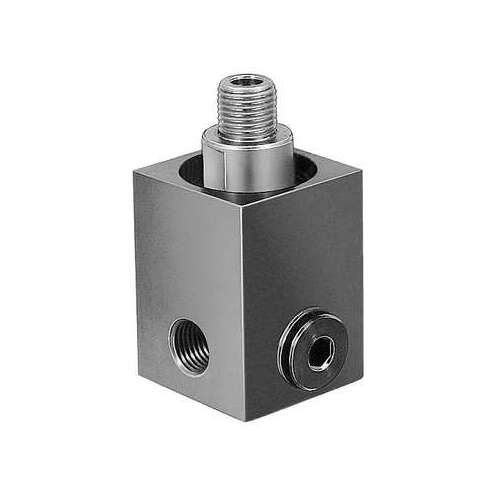

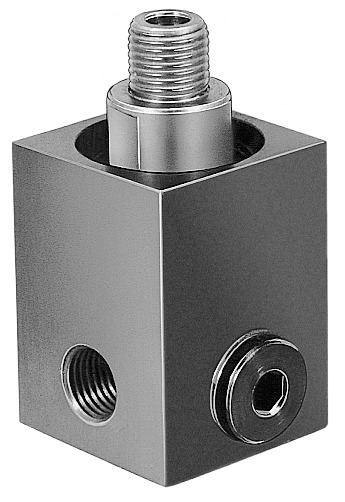

Rotary distributor

GF-1/4

2094

Max. rotational speed
300 1/min
Pneumatic connection, port 1
Male thread G1/4
Pneumatic connection, port 2
Female thread G1/4

GTIN: 4052568000066

Technical Data

  • Nominal size11.5 mm
  • Mounting positionoptional
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Standard flow rate 1-2.1 (6->0)2932 l/min
  • Standard flow rate 1-2.X open (6->0)2977 l/min
  • Standard nominal flow rate 1.1-2.11792 l/min
  • Max. rotational speed300 rpm
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight250 g
  • Pneumatic connection, port 1Male thread G1/4
  • Pneumatic connection, port 2Female thread G1/4
  • Note on materialsRoHS-compliant
  • Material housingWrought aluminium alloy
  • Material shaftHigh-alloy steel

DISTRIBUTOR-GF_EN.PDF

Rotary distributor

SKU 2094
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
