One-way flow control valve

GG-1/4-3/8

3633

Valve function
One-way flow control function
Standard nominal flow rate in flow control direction
870 l/min
Pneumatic connection, port 1
G1/4
Adjustment component
Roller lever

GTIN: 4052568110352

Technical Data

  • Valve functionOne-way flow control function
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Type of actuationMechanical
  • Adjustment componentRoller lever
  • Type of mountingWith through-hole
  • Standard nominal flow rate in flow control direction870 l/min
  • Standard nominal flow rate in blocked direction1150 l/min
  • Operating pressure0.03 bar ... 8 bar
  • Operating pressure0.43 psi ... 116 psi
  • Ambient temperature-10 °C ... 60 °C
  • Material housingWrought aluminium alloy
  • Mounting positionoptional

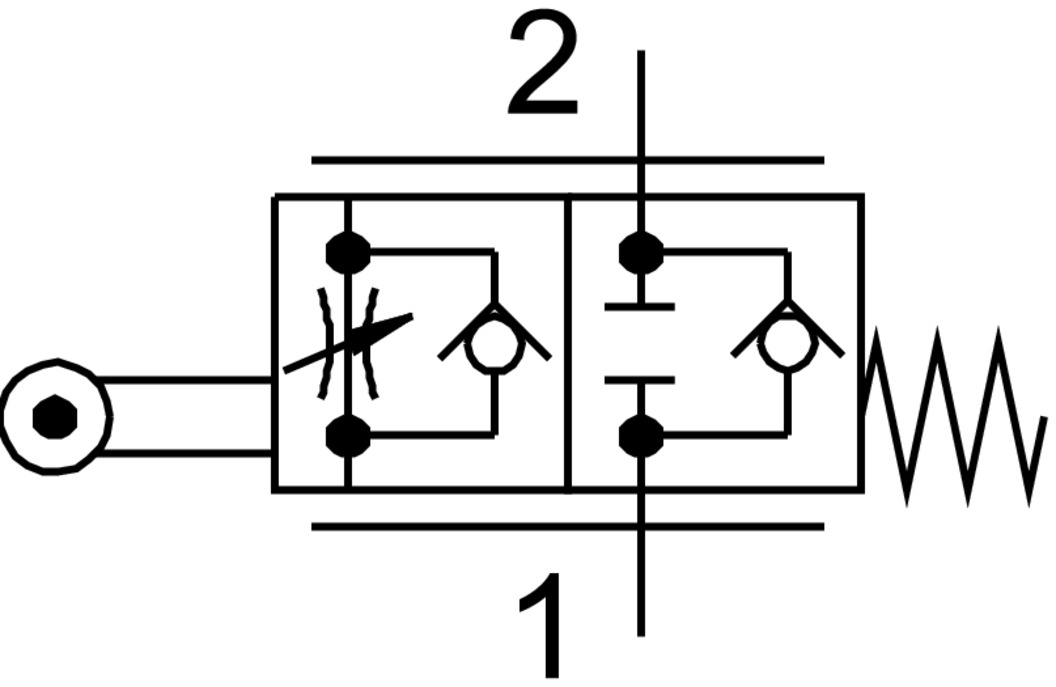

  • Symbol00991465
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-10 °C ... 60 °C
  • Product weight380 g
  • Material sealsNBR

Downloads

Technical data

Reliability datasheet

Links

Spare parts

One-way flow control valveOne-way flow control valve

SKU 3633
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
