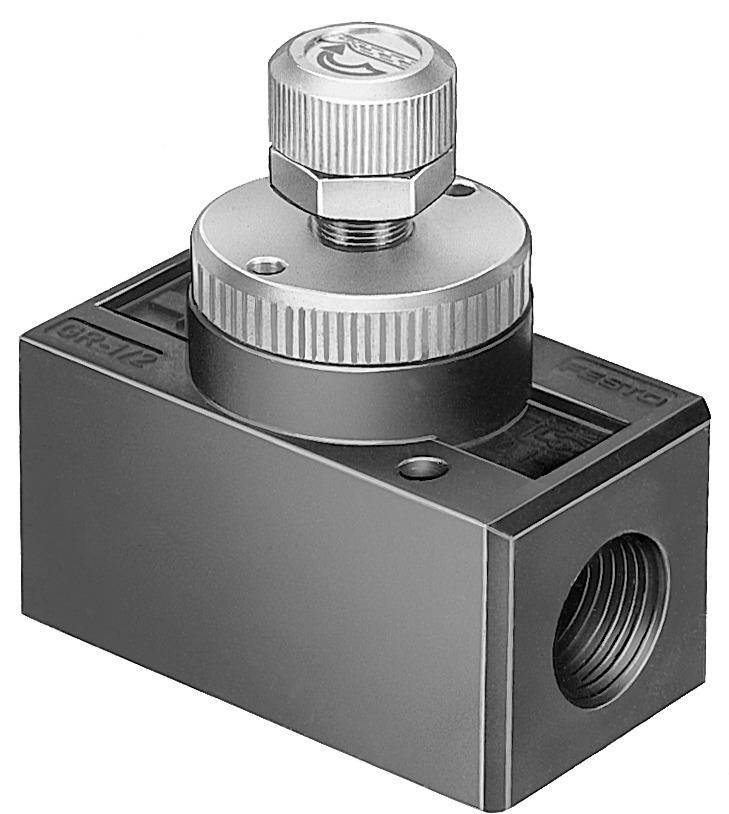

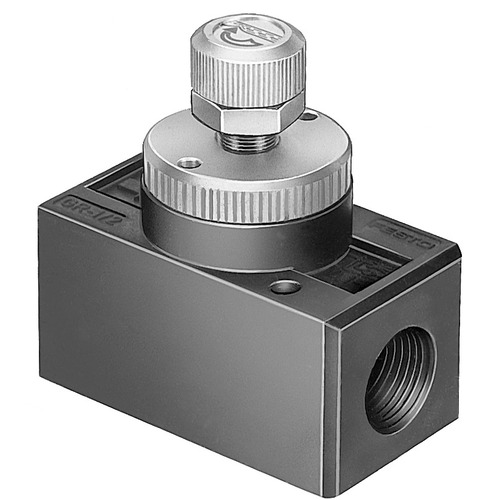

One-way flow control valve

GR-1/2

3720

Valve function
One-way flow control function
Standard nominal flow rate in flow control direction
1620 l/min
Pneumatic connection, port 1
Female thread G1/2
Adjustment component
Knurled screw

GTIN: 4052568000509

Technical Data

  • Valve functionOne-way flow control function
  • Pneumatic connection, port 1Female thread G1/2
  • Pneumatic connection, port 2Female thread G1/2
  • Adjustment componentKnurled screw
  • Type of mountingWith through-hole
  • Standard nominal flow rate in flow control direction1620 l/min
  • Standard nominal flow rate in blocked direction2760 l/min
  • Operating pressure0.01 MPa ... 1 MPa
  • Operating pressure0.1 bar ... 10 bar
  • Operating pressure1.45 psi ... 145 psi
  • Ambient temperature-20 °C ... 75 °C
  • Material housingDie-cast zinc
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Mounting positionoptional
  • Symbol00991453
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 75 °C
  • Product weight517 g
  • Note on materialsRoHS-compliant
  • Material adjusting screwBrass
  • Material nutGalvanised steel

Downloads

Technical data

Reliability datasheet

Links

Spare parts

One-way flow control valve

One-way flow control valve

SKU 3720
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
