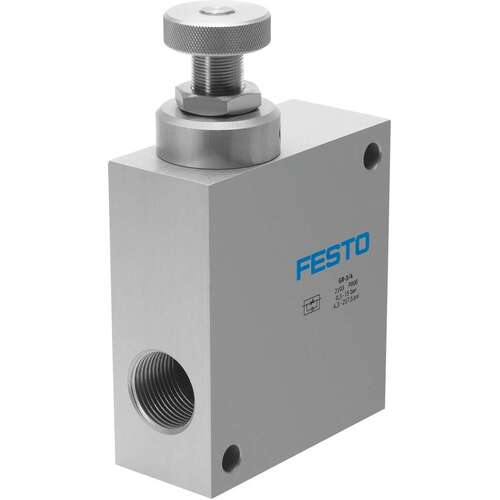

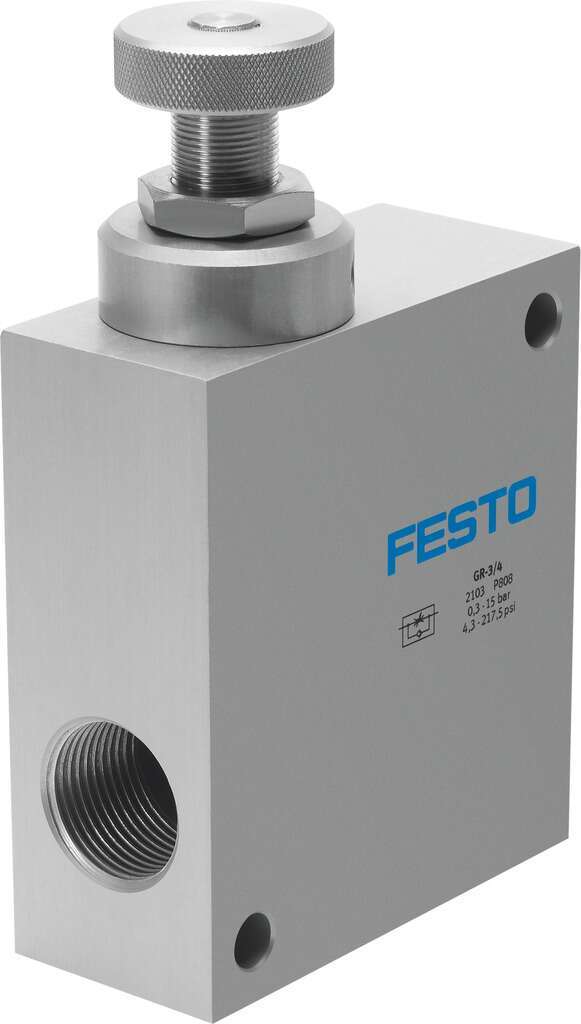

One-way flow control valve

GR-3/4

2103

Valve function
One-way flow control function
Standard nominal flow rate in flow control direction
3300 l/min
Pneumatic connection, port 1
G3/4
Adjustment component
Knurled screw

GTIN: 4052568000080

Technical Data

  • Valve functionOne-way flow control function
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Adjustment componentKnurled screw
  • Type of mountingWith through-hole
  • Standard nominal flow rate in flow control direction3300 l/min
  • Standard nominal flow rate in blocked direction4800 l/min
  • Operating pressure0.3 bar ... 15 bar
  • Ambient temperature-10 °C ... 60 °C
  • Material housingWrought aluminium alloy
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Mounting positionoptional

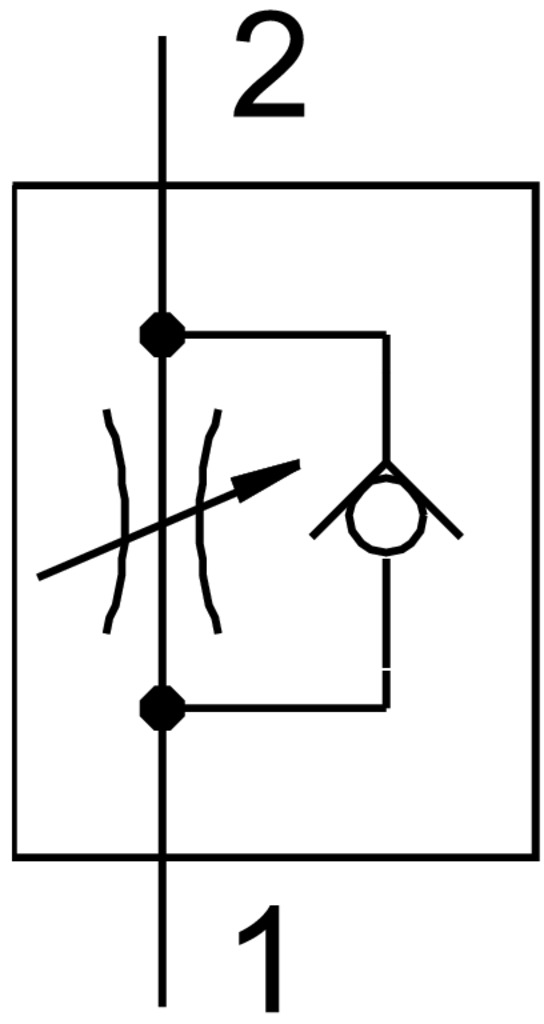

  • Symbol00991453
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Product weight938 g
  • Note on materialsRoHS-compliant

One-way flow control valve

One-way flow control valve

SKU 2103
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
