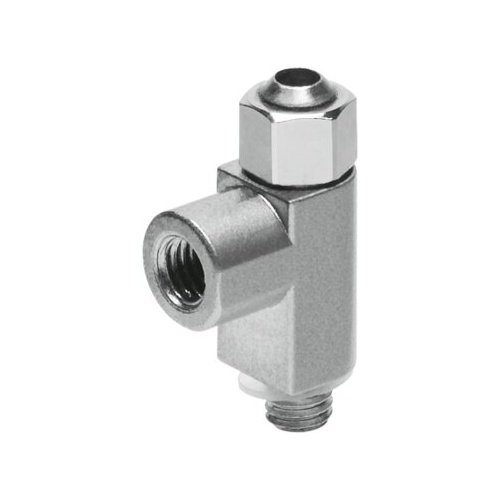

Throttle valveGRLO-M3

175039

GTIN: 4052568037635

Valve function
Flow control function
Standard nominal flow rate in flow control direction
18 l/min
Pneumatic connection, port 1
M3
Operating pressure
0 bar - 10 bar
Adjustment component
Slotted head screw



Technical Data Throttle valve GRLO-M3

  • Valve functionFlow control function
  • Pneumatic connection, port 1M3
  • Pneumatic connection, port 2M3
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in
  • Standard nominal flow rate in flow control direction18 l/min
  • Operating pressure0 bar ... 10 bar
  • Ambient temperature-10 °C ... 60 °C
  • Mounting positionAny
  • Symbol00991454
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)33 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Max. tightening torque0.3 Nm
  • Product weight2 g
  • Material screwed plugBrass
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc



SKU 175039
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
