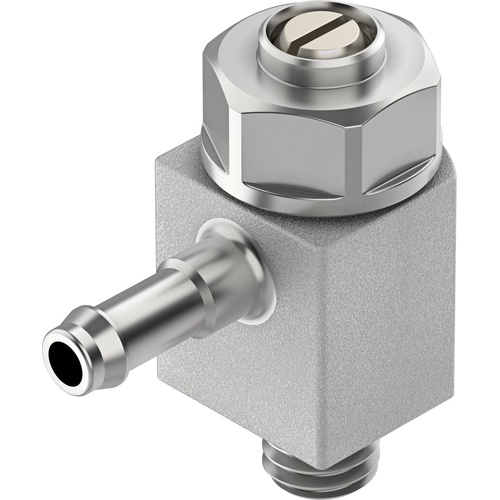

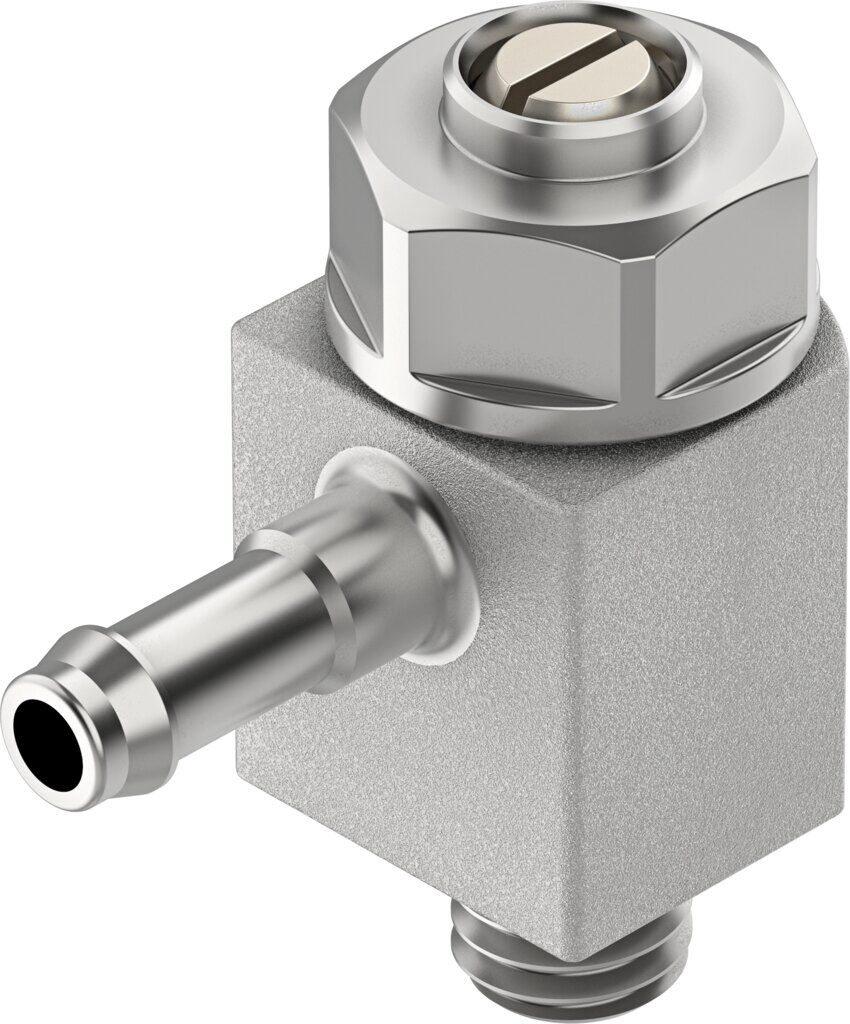

Throttle valve

GRLO-M5-PK-3-B

151182





GTIN: 4052568030605

Valve function
Flow control function
Standard nominal flow rate in flow control direction
83 l/min
Pneumatic connection, port 1
M5
Operating pressure
0 bar - 10 bar
Adjustment component
Slotted head screw

Technical Data

  • Valve functionFlow control function
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2PK-3
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in
  • Standard nominal flow rate in flow control direction83 l/min
  • Operating pressure0 bar ... 10 bar
  • Ambient temperature-10 °C ... 60 °C
  • Nominal size2 mm
  • Mounting positionoptional
  • Symbol00991454
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)140 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Max. tightening torque1.5 Nm
  • Product weight10 g
  • Material screwed plugBrass Nickel-plated
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc



SKU 151182
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
