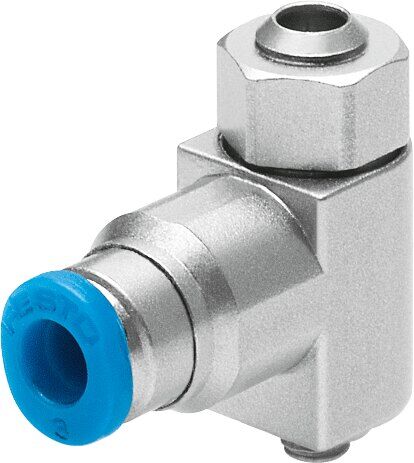

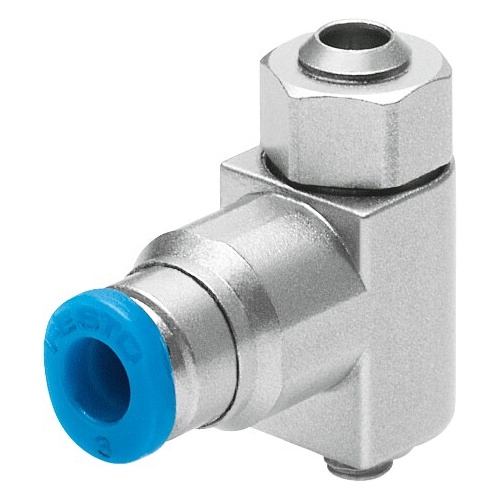

One-way flow control valveGRLZ-M3-QS-3

175043

GTIN: 4052568037673

Valve function
Supply air one-way flow control function
Standard nominal flow rate in flow control direction
41 l/min
Pneumatic connection, port 1
QS-3
Adjustment component
Slotted head screw



Technical Data One-way flow control valve GRLZ-M3-QS-3

  • Valve functionSupply air one-way flow control function
  • Pneumatic connection, port 1QS-3
  • Pneumatic connection, port 2M3
  • Adjustment componentSlotted head screw
  • Type of mountingScrew-in
  • Standard nominal flow rate in flow control direction41 l/min
  • Standard nominal flow rate in blocked direction27 l/min ... 44 l/min
  • Operating pressure0.2 bar ... 10 bar
  • Ambient temperature-10 °C ... 60 °C
  • Mounting positionAny
  • Symbol00991453
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)95 l/min
  • Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)75 l/min ... 100 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Max. tightening torque0.3 Nm
  • Product weight7 g
  • Material screwed plugBrass nickel-plated
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material release ringPOM
  • Material adjusting screwBrass
  • Material swivel fittingDie-cast zinc



SKU 175043
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
