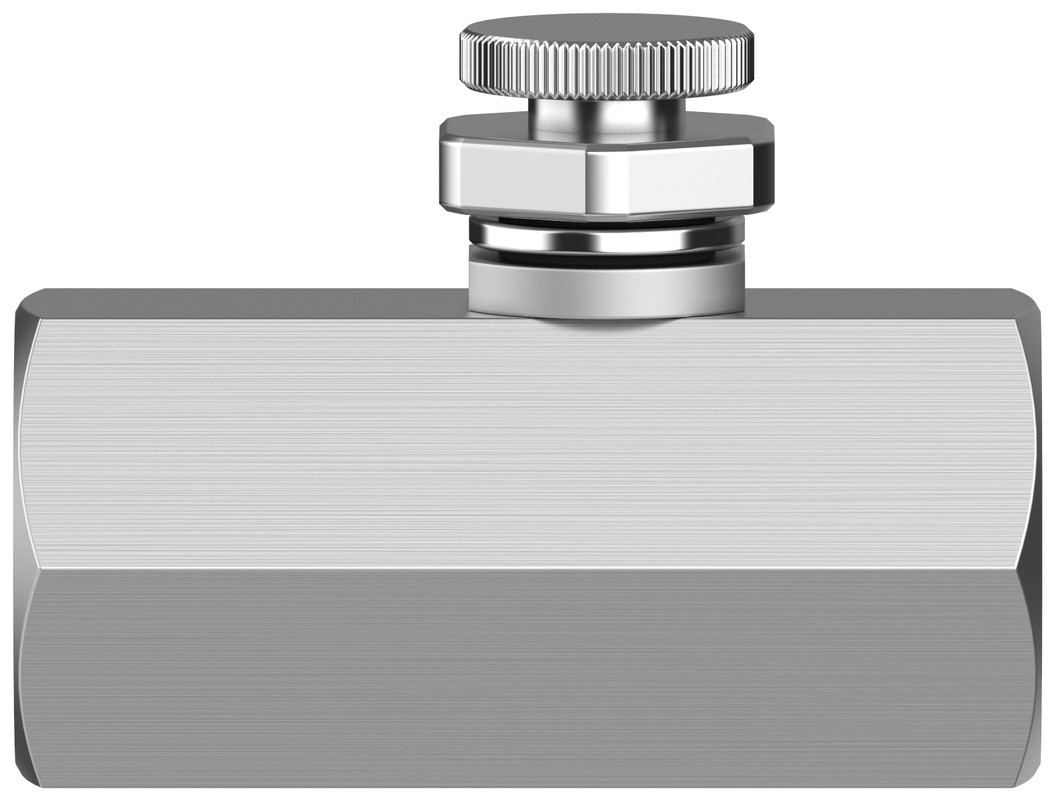

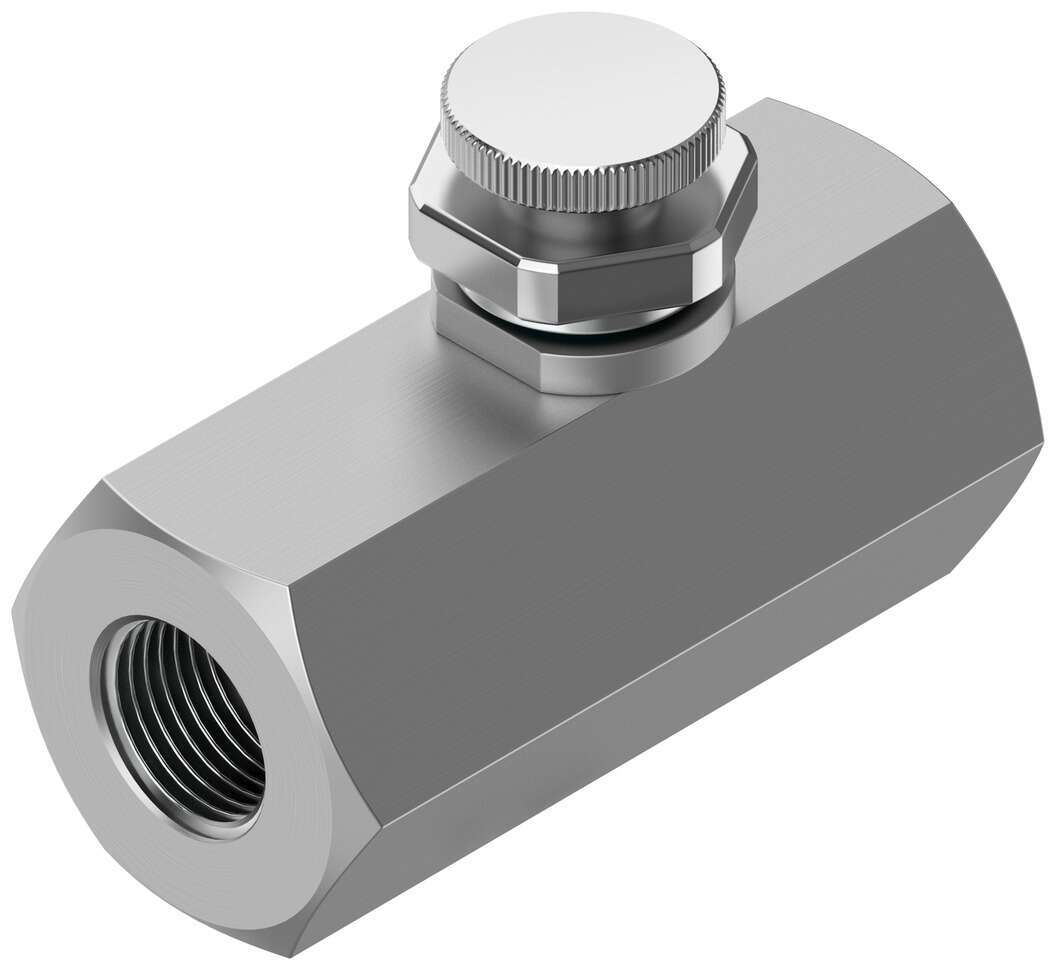

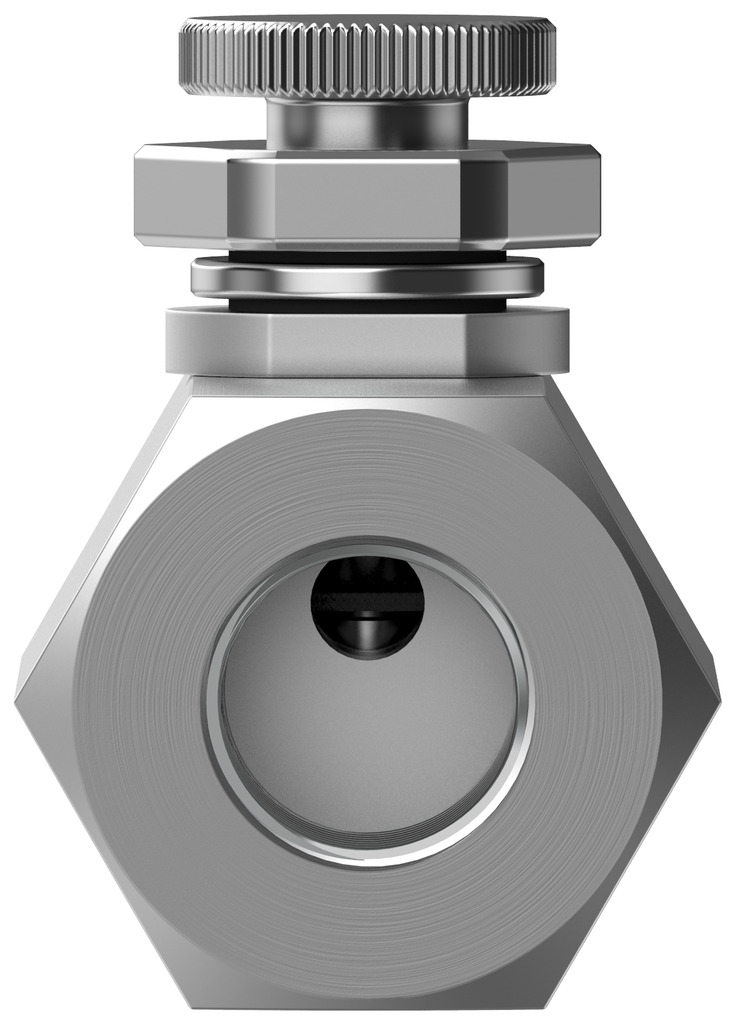

Throttle valve

GRO-1/4

2109

Valve function
Flow control function
Standard nominal flow rate in flow control direction
350 l/min
Pneumatic connection, port 1
G1/4
Operating pressure
0 bar - 10 bar
Adjustment component
Knurled screw

GTIN: 4052568000103

Technical Data

  • Valve functionFlow control function
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Adjustment componentKnurled screw
  • Type of mountingIn-line installation
  • Standard nominal flow rate in flow control direction350 l/min
  • Operating pressure0 bar ... 10 bar
  • Ambient temperature-20 °C ... 60 °C
  • Material housingWrought aluminium alloy
  • Mounting positionoptional

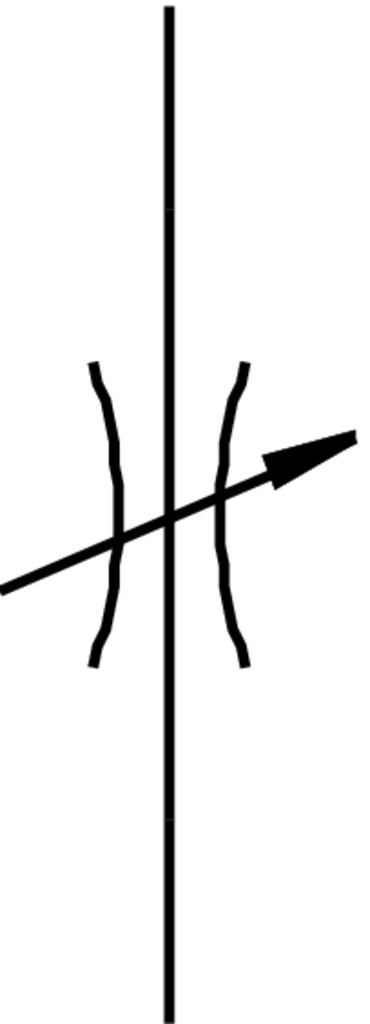

  • Symbol00991454
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 60 °C
  • Product weight80 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material adjusting screwSteel Galvanised

GRO-VFFI_EN.PDF

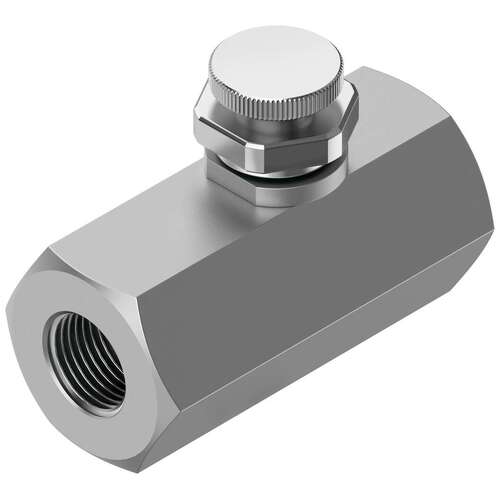

Throttle valveThrottle valve

Throttle valve

SKU 2109
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
