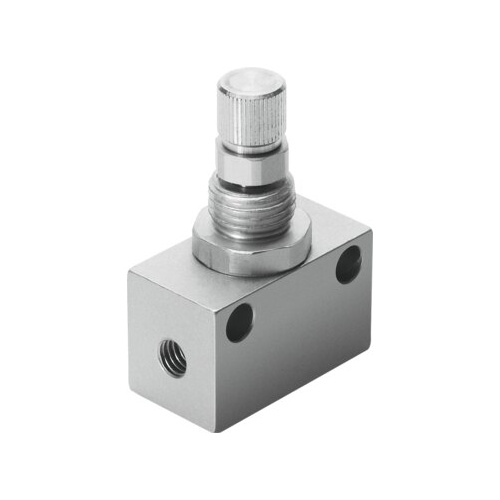

Throttle valve

GRO-M5-B

151214





GTIN: 4052568069940

Valve function
Flow control function
Standard nominal flow rate in flow control direction
105 l/min
Pneumatic connection, port 1
M5
Operating pressure
0 bar - 10 bar
Adjustment component
Knurled screw



Technical Data

  • Valve functionFlow control function
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Adjustment componentKnurled screw
  • Type of mountingWith through-hole
  • Standard nominal flow rate in flow control direction105 l/min
  • Operating pressure0 bar ... 10 bar
  • Ambient temperature-20 °C ... 60 °C
  • Material housingWrought aluminium alloy
  • Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Nominal size2 mm
  • Mounting positionoptional
  • Symbol00991454
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-20 °C ... 60 °C
  • Product weight19 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material adjusting screwHigh-alloy steel
  • Material nutWrought aluminium alloy
  • Material sleevePOM
SKU 151214
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
