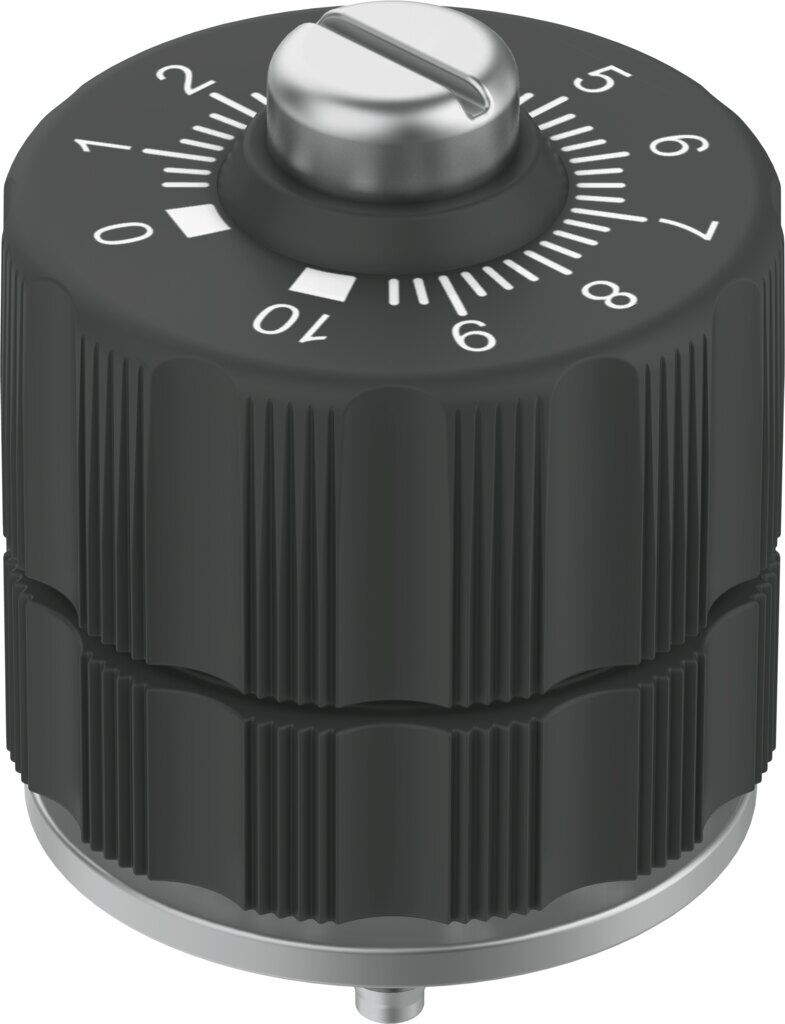

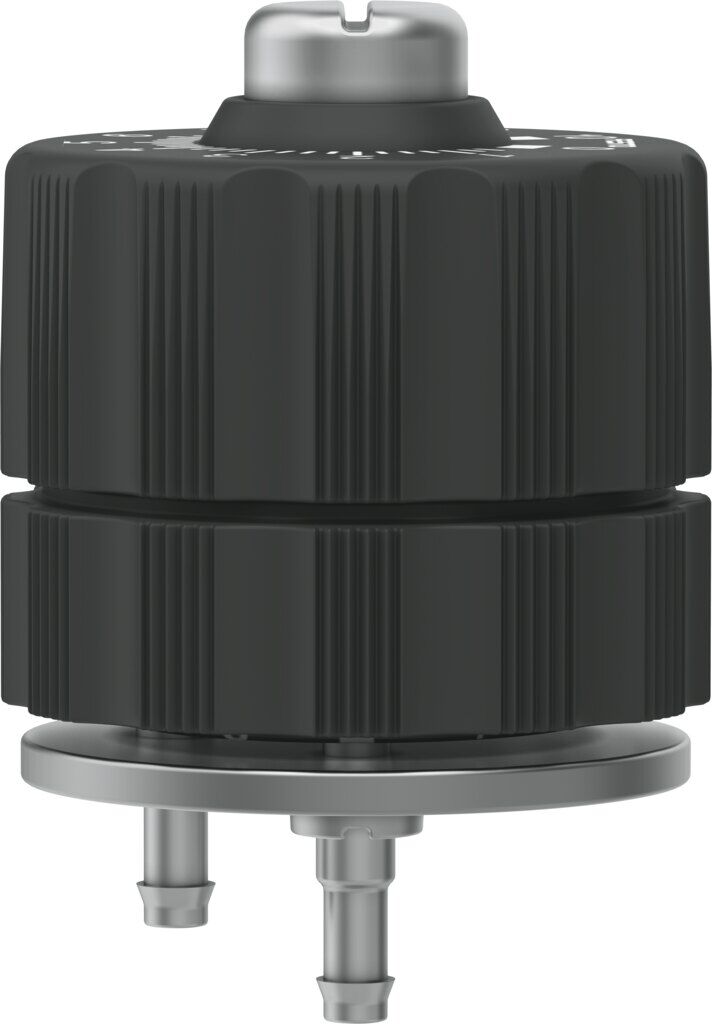

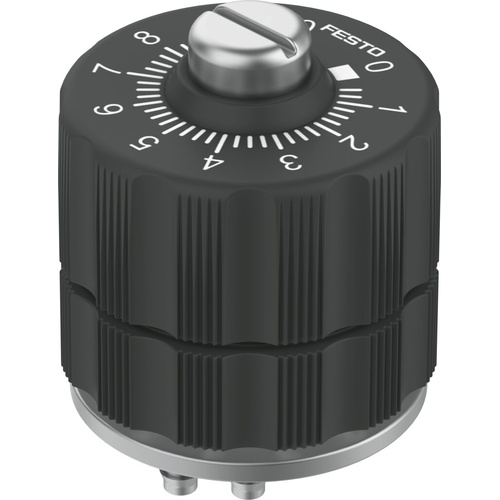

Precision one-way flow control valve

GTIN: 4052568112066

Technical Data

• Valve functionOne-way flow control function
• Pneumatic connection, port 1PK-3
• Pneumatic connection, port 2PK-3
• Type of actuationManual
• Adjustment componentRotary knob with scale
• Type of mountingFront panel mounting
• Standard nominal flow rate in flow control direction3.8 l/min
• Standard nominal flow rate in blocked direction95 l/min
• Operating pressure0 bar ... 8 bar
• Ambient temperature-10 °C ... 50 °C
• Material housingPA-reinforced
• Mounting positionoptional
• Symbol00991453
• Operating pressure from 2 to 10 bar ... 8 bar
• Standard nominal flow rate in throttle direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi)1.65 l/min
• Standard nominal flow rate in return direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi)15 l/min ... 50 l/min
• Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)5.2 l/min
• Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)131 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [5:4:3] Inert gases
• Note on operating and pilot mediumLubricated operation not possible
• LABS (PWIS) conformityVDMA24364 zone III
• Media temperature-10 °C ... 50 °C
• Product weight48 g
• Note on materialsRoHS-compliant
• Material sealsNBR PVC
• Material retaining bracketWrought aluminium alloy
• Material PK connectionsWrought aluminium alloy Brass
• Material screwsSteel
