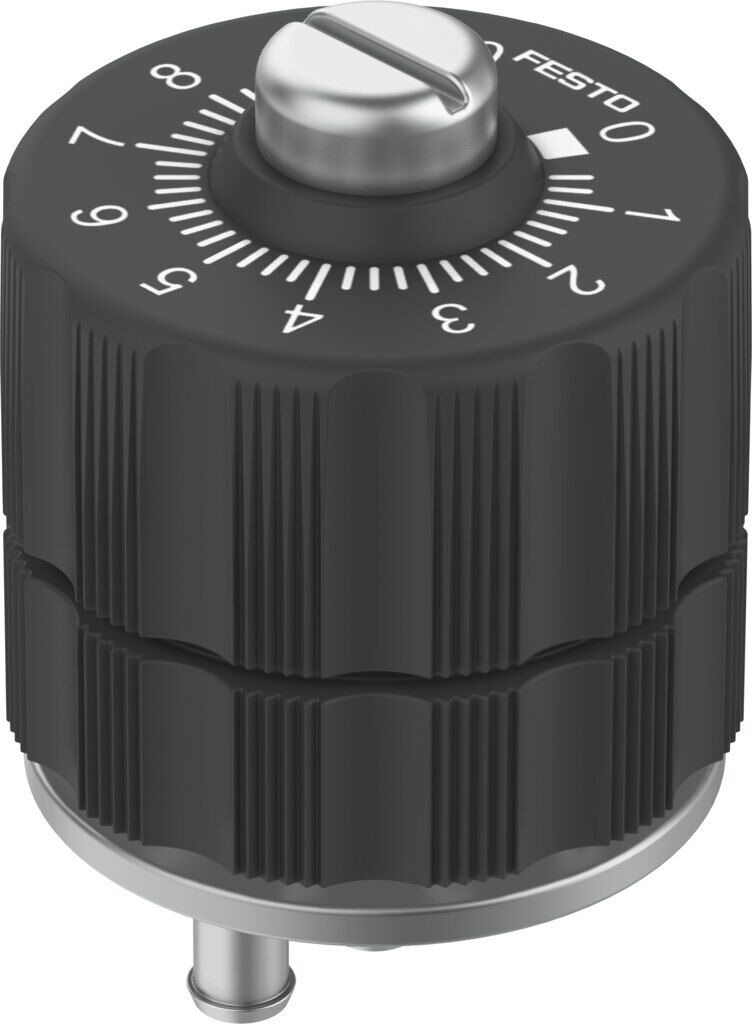

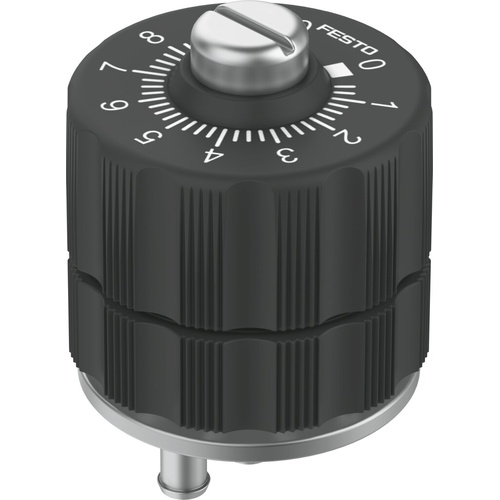

Precision flow control valve

GRPO-160-PK-4

13230





GTIN: 4052568112110

Valve function
Flow control function
Standard nominal flow rate in flow control direction
75.8 l/min
Pneumatic connection, port 1
PK-4
Operating pressure
0 bar - 8 bar
Adjustment component
Rotary knob with scale

Technical Data

  • Valve functionFlow control function
  • Pneumatic connection, port 1PK-4
  • Pneumatic connection, port 2PK-4
  • Type of actuationManual
  • Adjustment componentRotary knob with scale
  • Type of mountingFront panel mounting
  • Standard nominal flow rate in flow control direction75.8 l/min
  • Operating pressure0 bar ... 8 bar
  • Ambient temperature-10 °C ... 50 °C
  • Material housingPA-reinforced
  • Mounting positionoptional
  • Symbol00991454
  • Operating pressure from 2 to 10 bar ... 0.5 bar
  • Standard nominal flow rate in throttle direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi)38 l/min
  • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)129 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [5:4:3] Inert gases
  • Note on operating and pilot mediumLubricated operation not possible
  • LABS (PWIS) conformityVDMA24364 zone III
  • Media temperature-10 °C ... 50 °C
  • Product weight48 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR PVC
  • Material retaining bracketWrought aluminium alloy
  • Material PK connectionsWrought aluminium alloy Brass
  • Material screwsSteel



SKU 13230
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
