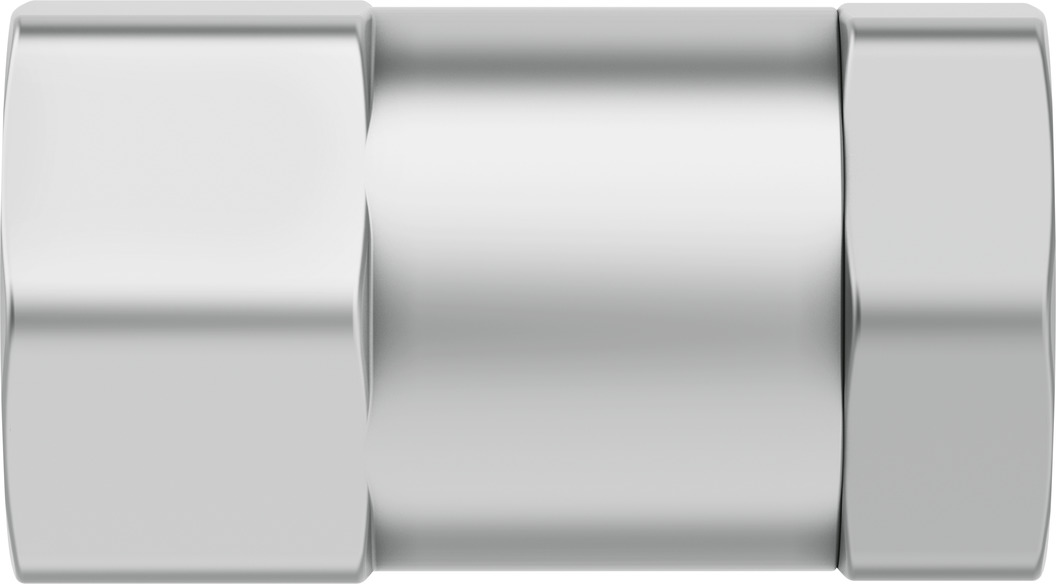

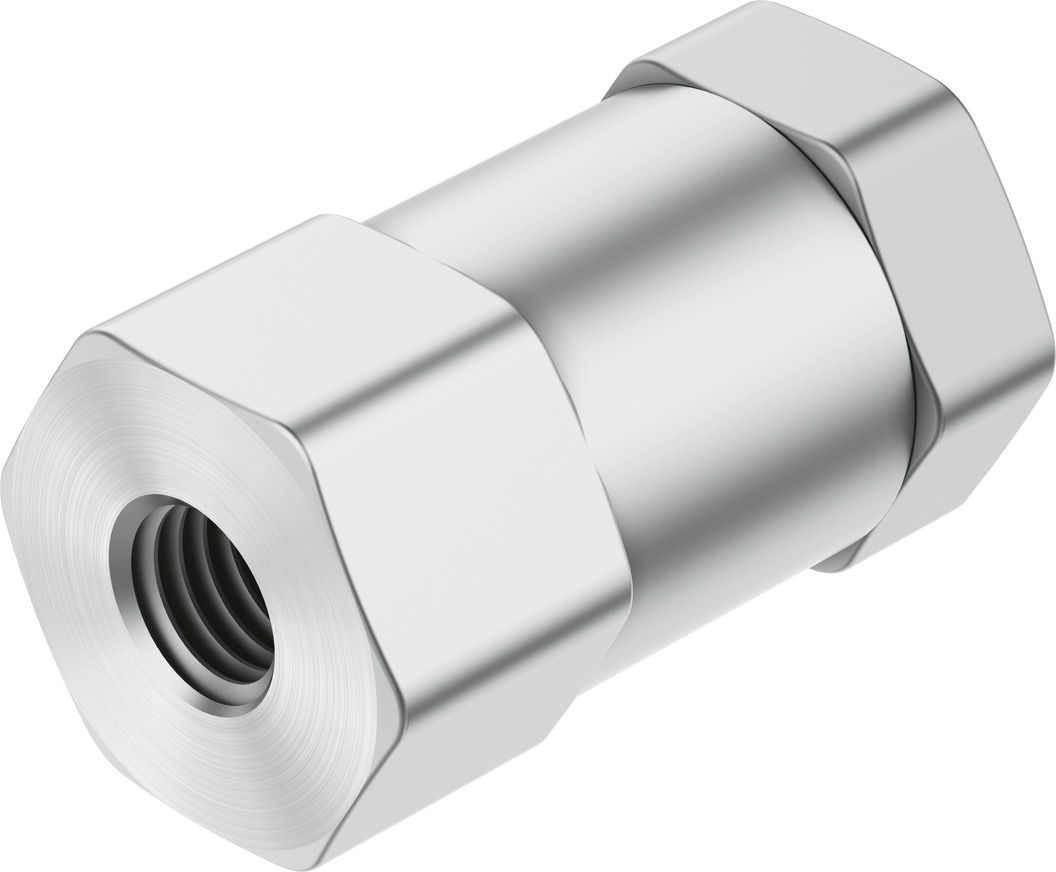

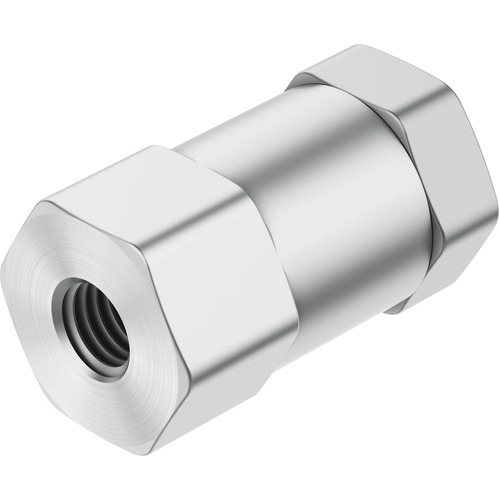

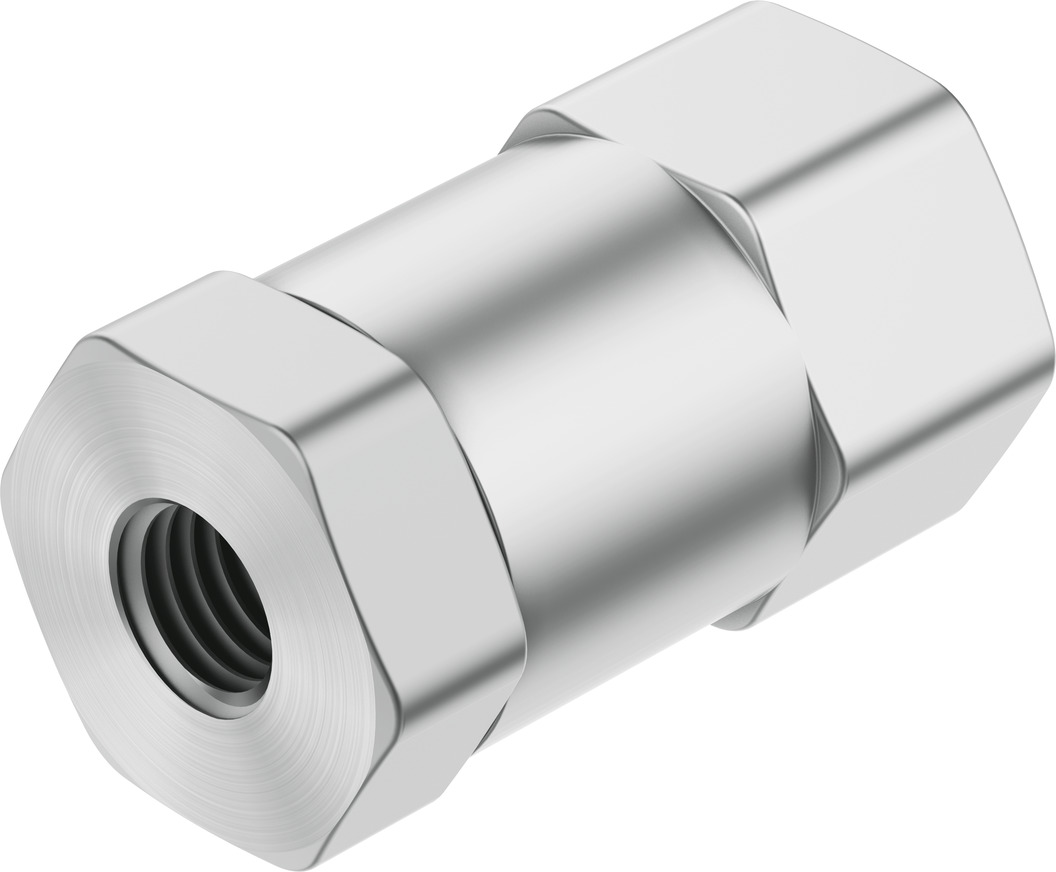

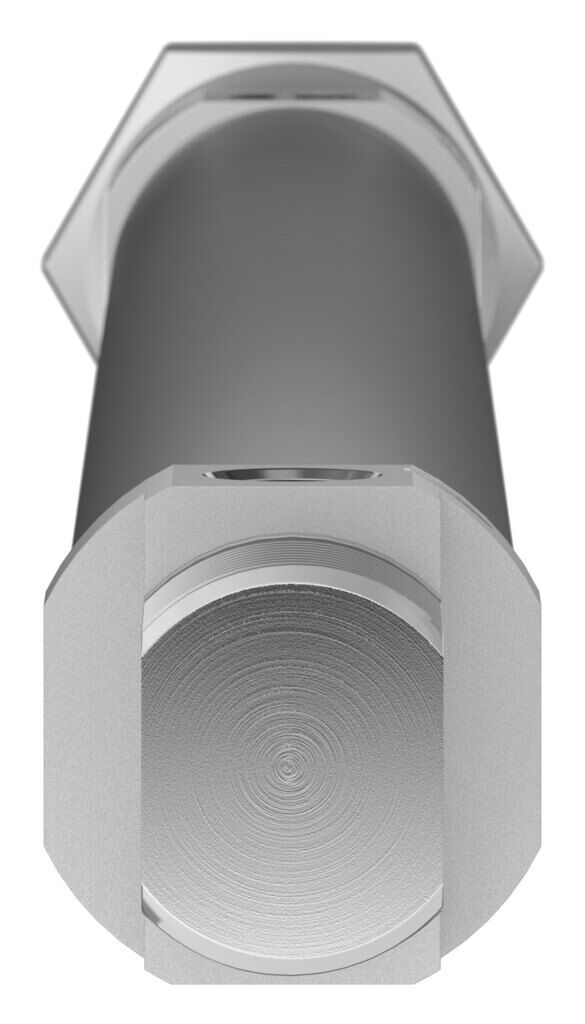

Check valve

H-M5

3671

Valve function
Non-return function
Pneumatic connection, port 1
M5
Pneumatic connection, port 2
M5
Operating pressure
0.4 bar - 8 bar
Material housing
Brass

GTIN: 4052568008437

Technical Data

  • Valve functionNon-return function
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Type of mountingIn-line installation
  • Standard nominal flow rate (standardised to DIN 1343)115 l/min
  • Operating pressure0.04 MPa ... 0.8 MPa
  • Operating pressure0.4 bar ... 8 bar
  • Ambient temperature-10 °C ... 60 °C
  • Material housingBrass
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

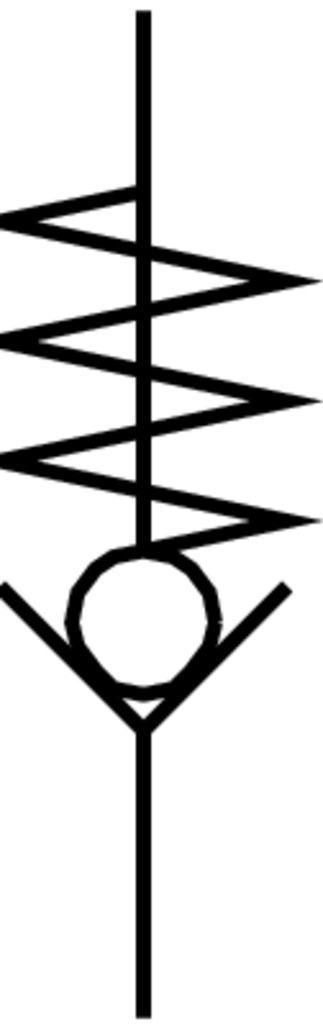

  • Symbol00991455
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-10 °C ... 60 °C
  • Note on materialsRoHS-compliant
  • Material sealsNBR

Downloads

H-HA-HB_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Check valveCheck valve

Check valveCheck valve

SKU 3671
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
