Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued

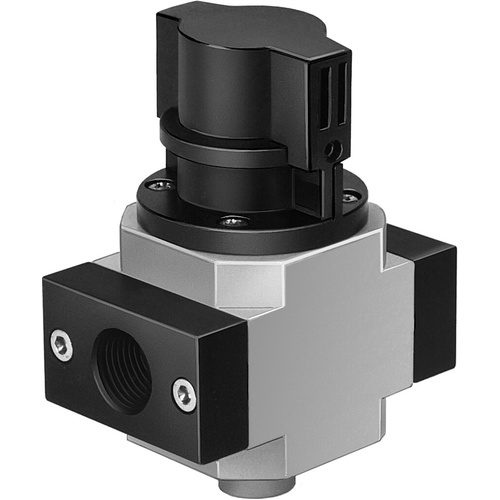

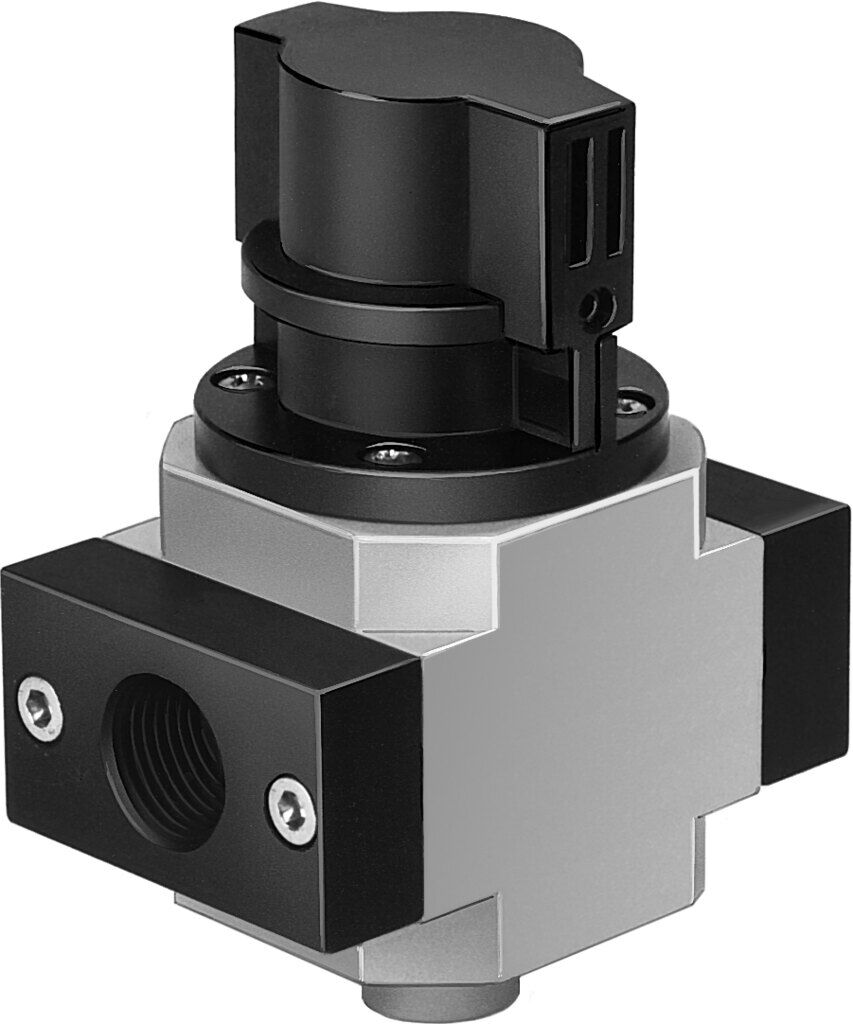

On/off valve

HE-3/8-D-MIDI

162809





GTIN: 4052568072612

Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
3200 l/min
Operating pressure
0 bar - 16 bar
Type of actuation
Manual

Technical Data

  • DesignPiston gate valve
  • Type of actuationManual
  • Sealing principleSoft
  • Exhaust-air functionCannot be throttled
  • Manual overrideNone
  • Symbol00995571
  • Valve function3/2-way, double solenoid
  • Operating pressure0 MPa ... 1.6 MPa
  • Operating pressure0 bar ... 16 bar
  • C value15.7 l/sbar
  • b value0.3
  • Standard nominal flow rate (standardised to DIN 1343)3200 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Type of mountingInline installation With accessories
  • Mounting positionAny
  • Flow directionNon-reversible
  • Product weight511 g
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Pneumatic connection, port 3G1/4
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 162809
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
