Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

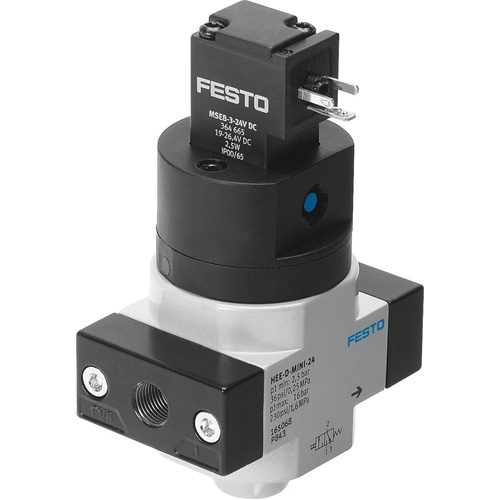

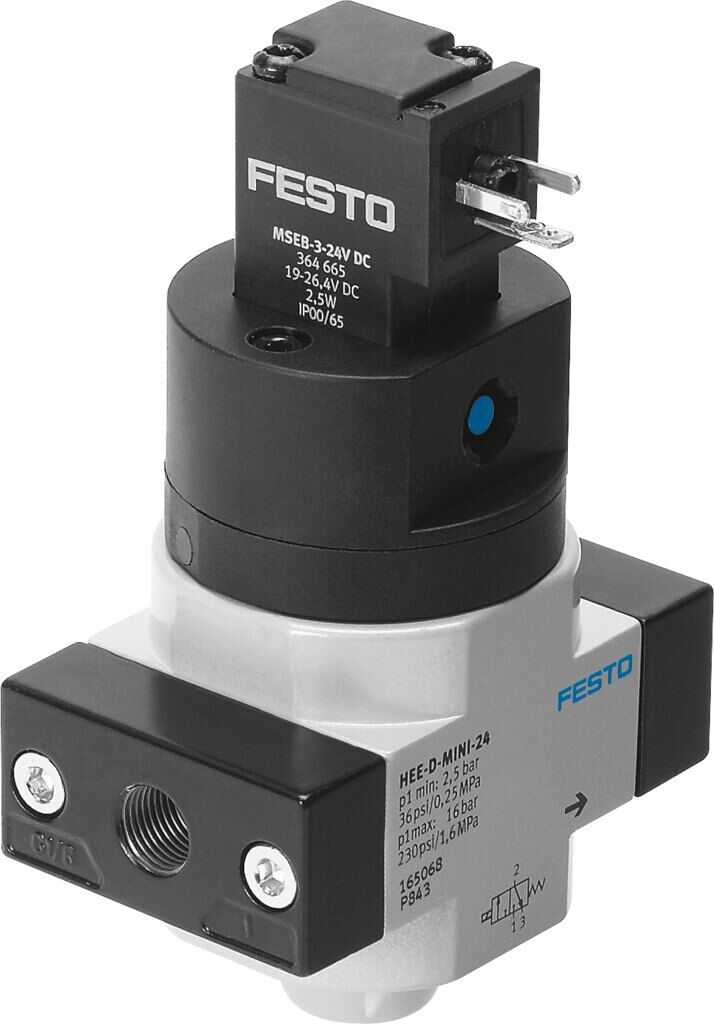

On/off valve

HEE-1/8-D-MINI-24

165068





GTIN: 4052568137403


Operating pressure
2.5 bar - 16 bar

Technical Data

  • Symbol00991008
  • Operating pressure0.25 MPa ... 1.6 MPa
  • Operating pressure2.5 bar ... 16 bar
  • lapOverlap
  • Characteristic coil data24 V DC: 2.5 W
  • Permissible voltage fluctuations+/-10%
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Electrical connectionType C Plug To DIN EN 175301-803
SKU 165068
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
