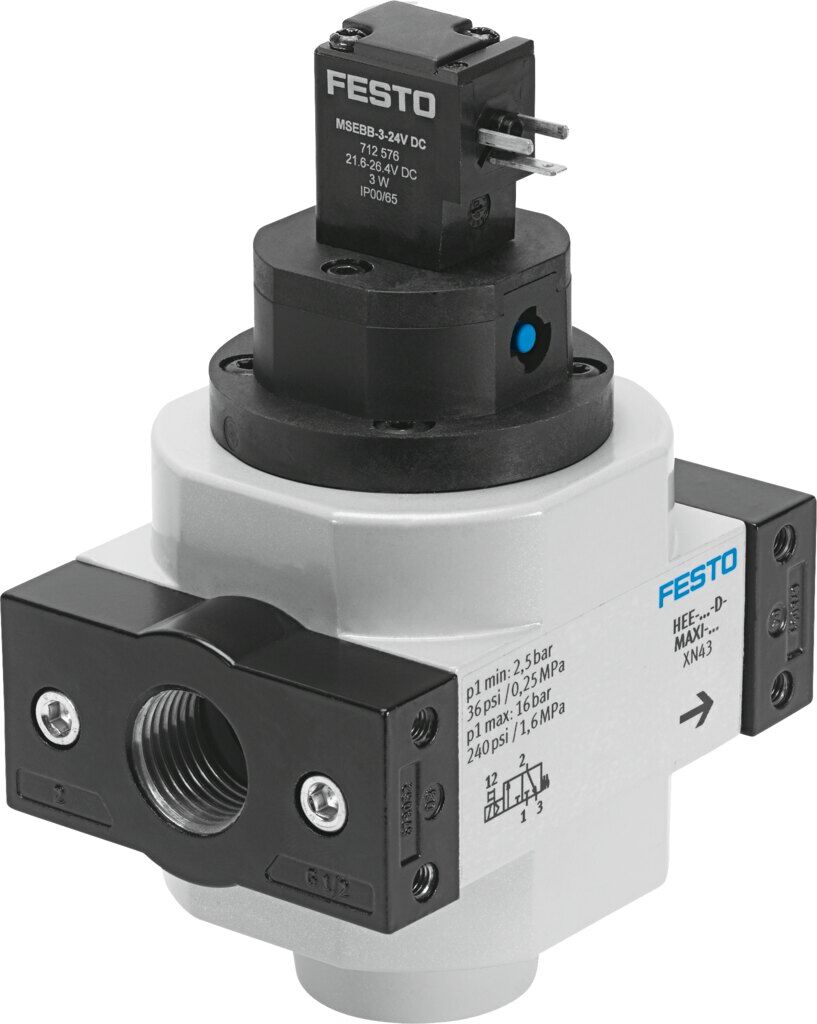

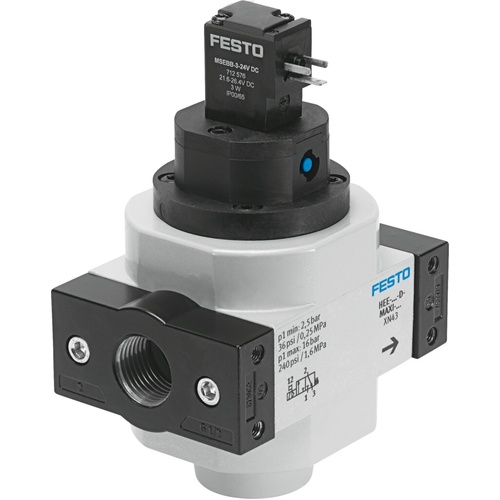

On/off valveHEE-1-D-MAXI-24

172953

GTIN: 4052568140748

Pneumatic connection, port 1
G1
Standard nominal flow rate (standardised to DIN 1343)
6500 l/min
Operating pressure
2.5 bar - 16 bar
Type of actuation
Electrical



Technical Data On/off valve HEE-1-D-MAXI-24

  • DesignPiston gate valve
  • Type of actuationElectrical
  • Sealing principleSoft
  • Exhaust-air functionCannot be throttled
  • Manual overrideDetenting
  • Type of resetMechanical spring
  • Type of pilotingPiloted
  • Symbol00991008
  • Valve function3/2-way, single solenoid, closed
  • Operating pressure0.25 MPa ... 1.6 MPa
  • Operating pressure2.5 bar ... 16 bar
  • lapOverlap
  • C value27.6 l/sbar
  • b value0.32
  • Standard nominal flow rate (standardised to DIN 1343)6500 l/min
  • Duty cycle100%
  • Characteristic coil data24 V DC: 2.5 W
  • Permissible voltage fluctuations+/-10%
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Note on materialsRoHS compliant
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Type of mountingInline installation With accessories
  • Mounting positionAny
  • Flow directionNon-reversible
  • Product weight800 g
  • Pneumatic connection, port 1G1
  • Pneumatic connection, port 2G1
  • Pneumatic connection, port 3G3/8
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Electrical connectionType C Plug To DIN EN 175301-803
  • Signal status displayWith accessories
  • Material sealsNBR
  • Material housingDie-cast aluminium
