Product Lifecycle Information



Product is planned to be discontinued. Do not use for new designs.




01/2027 - Product is being phased out. Do not use for new designs.




11/2028 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2028 - Product is discontinued.

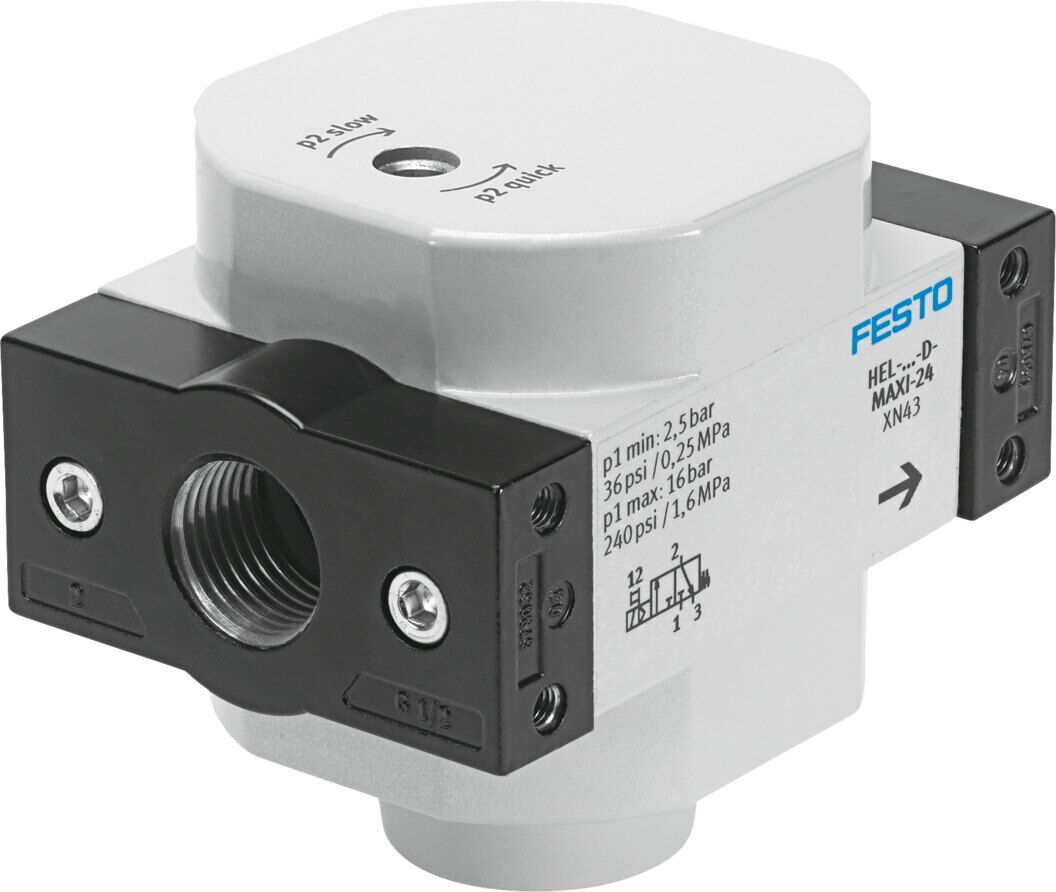

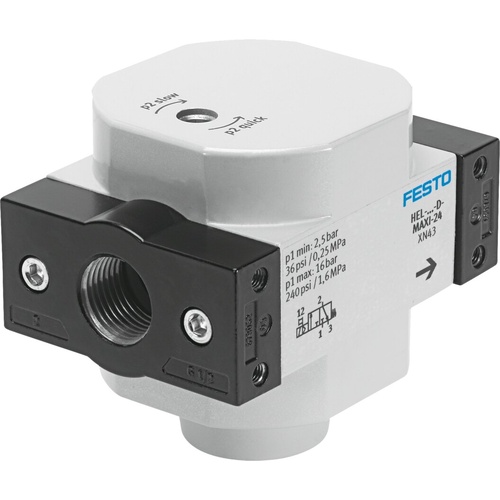

On/off valve

HEL-3/4-D-MAXI

165082





GTIN: 4052568137502

Pneumatic connection, port 1
G3/4
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Operating pressure
3 bar - 16 bar
Type of actuation
Pneumatic

Technical Data

  • Exhaust-air functionCan be throttled
  • Type of actuationPneumatic
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideNone
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • Type of pilotingDirect
  • Flow directionNon-reversible
  • Symbol00991513
  • Valve function2/2-way, single solenoid, closed
  • Operating pressure0.3 MPa ... 1.6 MPa
  • Operating pressure3 bar ... 16 bar
  • b value0.38
  • C value33.9 l/sbar
  • Standard nominal flow rate (standardised to DIN 1343)6000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight394 g
  • Type of mountingInline installation
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 165082
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
