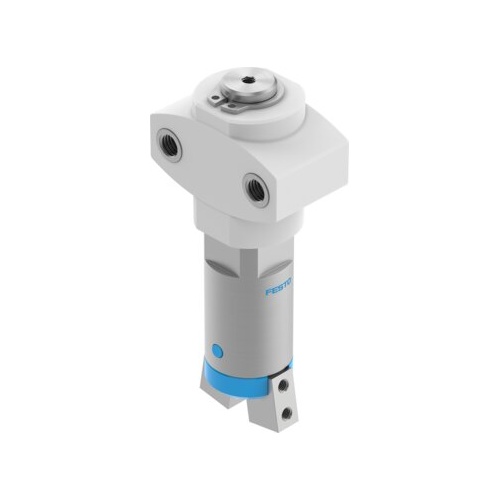

Angle gripperHGWM-12-EO-G6

185699

GTIN: 4052568144630

Max. force on gripper jaw Fz static
20 N
Max. opening angle
18.5 deg
Position detection
None

Technical Data Angle gripper HGWM-12-EO-G6

  • Size12
  • Max. angular gripper jaw backlash ax, ay0.5 deg
  • Max. gripper jaw backlash Sz0.03 mm
  • Max. opening angle18.5 deg
  • Repetition accuracy, gripper≤0.02 mm
  • Number of gripper jaws2
  • Drive systemPneumatic
  • Mode of operationSingle-acting Open
  • Gripper functionBracket
  • Gripper force back-upNone
  • DesignWedge-shaped drive
  • Position detectionNone
  • Symbol00991897
  • Operating pressure2 bar ... 8 bar
  • Max. operating frequency of gripper4 Hz
  • Min. opening time at 0.6 MPa (6 bar, 87 psi)3.7 ms
  • Min. closing time at 0.6 MPa (6 bar, 87 psi)1.8 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature5 °C ... 60 °C
  • Spring force of stroke compensator10 N ... 23 N
  • Spring return moment0.013 Nm
  • Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)64 Ncm
  • Mass moment of inertia421 kgcm²
  • Mass moment of inertia per external gripper finger560 kgcm²
  • Max. force on gripper jaw Fz static20 N
  • Max. torque at gripper Mx static0.4 Nm
  • Max. torque at gripper My static0.4 Nm
  • Max. torque at gripper Mz static0.4 Nm
  • Max. mass per external gripper finger1000 g
  • Product weight75 g
  • Type of mountingWith female thread
  • Pneumatic connectionM3
  • Note on materialsRoHS compliant
  • Material cover capPOM
  • Material housingHigh-alloy stainless steel
  • Material gripper jawsHigh-alloy steel
