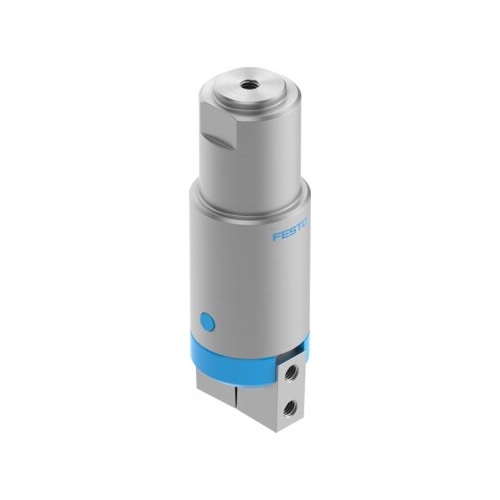

Angle gripperHGWM-12-EZ-G8

185704

GTIN: 4052568144685

Max. force on gripper jaw Fz static
20 N
Max. opening angle
14 deg
Position detection
None



Technical Data Angle gripper HGWM-12-EZ-G8

  • Size12
  • Max. angular gripper jaw backlash ax, ay0.5 deg
  • Max. gripper jaw backlash Sz0.03 mm
  • Max. opening angle14 deg
  • Repetition accuracy, gripper≤0.02 mm
  • Number of gripper jaws2
  • Mode of operationSingle-acting Closed
  • Gripper functionBracket
  • DesignWedge-shaped drive
  • Position detectionNone
  • Symbol00991898
  • Operating pressure2 bar ... 8 bar
  • Max. operating frequency of gripper4 Hz
  • Min. opening time at 0.6 MPa (6 bar, 87 psi)1.7 ms
  • Min. closing time at 0.6 MPa (6 bar, 87 psi)2.8 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature5 °C ... 60 °C
  • Spring return moment0.015 Nm
  • Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening76 Ncm
  • Mass moment of inertia215.4 kgcm²
  • Mass moment of inertia per external gripper finger560 kgcm²
  • Max. force on gripper jaw Fz static20 N
  • Max. torque at gripper Mx static0.4 Nm
  • Max. torque at gripper My static0.4 Nm
  • Max. torque at gripper Mz static0.4 Nm
  • Max. mass per external gripper finger1000 g
  • Product weight45 g
  • Type of mountingClamped
  • Pneumatic connectionM3
  • Material cover capPOM
  • Material housingHigh-alloy stainless steel
  • Material gripper jawsHigh-alloy steel
SKU 185704
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
