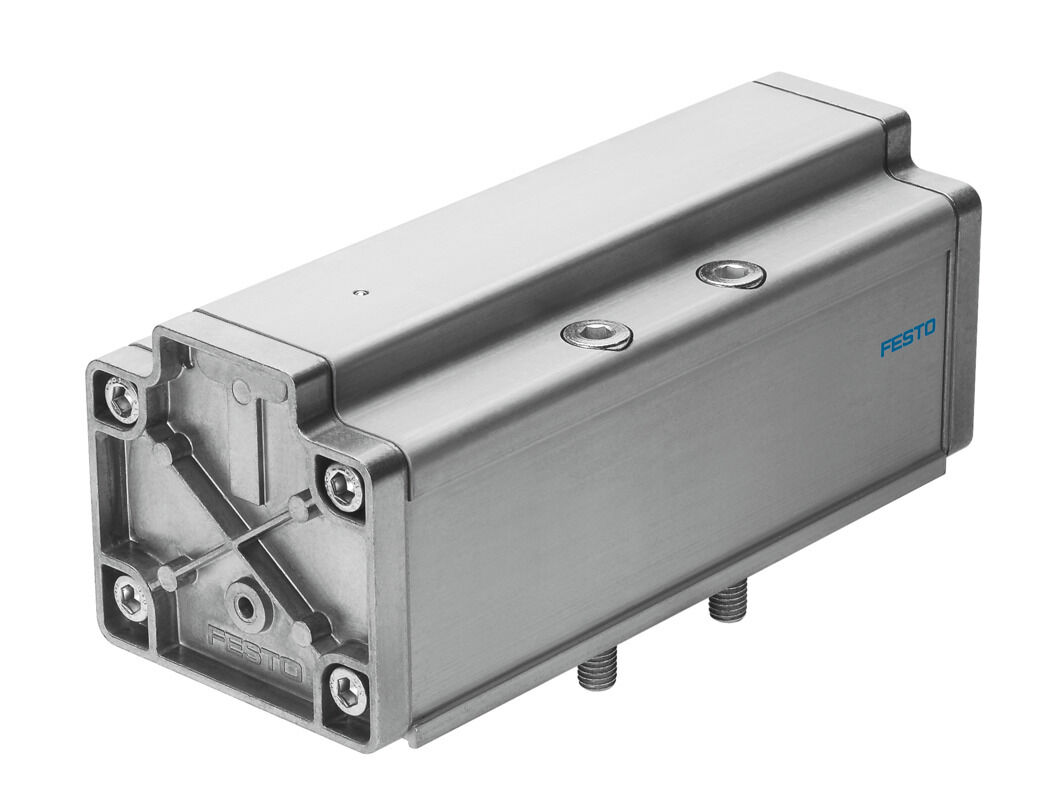

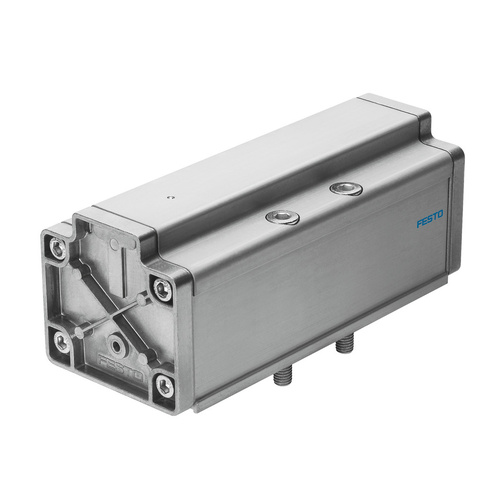

Pneumatic valve

J-5/2-3/4-D-4

12462





GTIN: 4052568112011

Valve function
5/2 bistable
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Pneumatic connection, port 1
Sub-base size 4 to ISO 5599-1
Type of actuation
Pneumatic



Technical Data

  • Valve function5/2 bistable
  • Type of actuationPneumatic
  • Construction width76 mm
  • Standard nominal flow rate (standardised to DIN 1343)6000 l/min
  • pneumatic working portSub-base size 4 to ISO 5599-1 G3/4
  • Operating pressure-0.9 bar ... 16 bar
  • DesignPiston gate valve
  • Nominal size18 mm
  • Grid dimension82 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Conforms to standardISO 5599-1
  • Manual overrideNone
  • ISO code401
  • Type of pilotingDirect
  • Flow directionReversible
  • Symbol00991037
  • lapOverlap
  • Pilot pressure2 bar ... 16 bar
  • Switching time reversal20 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level85 dB(A)
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-10 °C ... 60 °C
  • Product weight1800 g
  • Type of mountingOn sub-base Via through-hole and screw
  • Pilot air port 12Sub-base size 4 to ISO 5599-1
  • Pilot air port 14Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 1Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 4 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 4 to ISO 5599-1
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingAluminium
SKU 12462
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
