Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



01/2025 - Product is being phased out. Do not use for new designs.




06/2027 - Product is discontinued. Products for replacement may be available while stocks permit.




07/2027 - Product is discontinued.

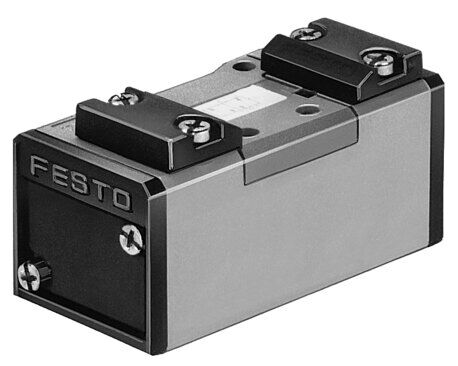

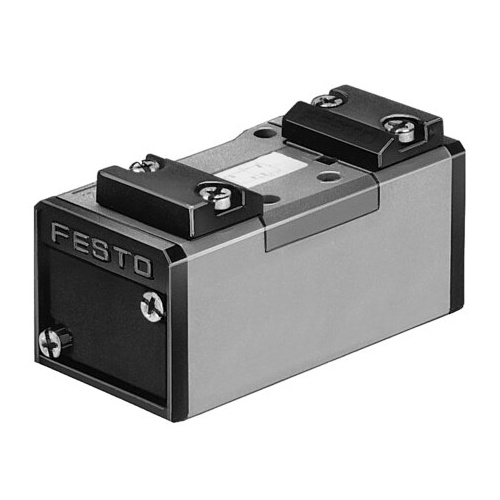

Pneumatic valve

JD-5/2-D-1-C

151008





GTIN: 4052568116552

Valve function
5/2-way, bistable, dominant
Standard nominal flow rate (standardised to DIN 1343)
1200 l/min
Pneumatic connection, port 1
Sub-base size 1 to ISO 5599-1
Type of actuation
Pneumatic

Technical Data

  • Valve function5/2-way, bistable, dominant
  • Type of actuationPneumatic
  • Construction width42 mm
  • Standard nominal flow rate (standardised to DIN 1343)1200 l/min
  • pneumatic working portSub-base size 1 to ISO 5599-1 G1/4
  • Operating pressure-0.09 MPa ... 1.6 MPa
  • Operating pressure-0.9 bar ... 16 bar
  • DesignPiston gate valve
  • Nominal size8 mm
  • Grid dimension43 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Conforms to standardISO 5599-1
  • Manual overrideNone
  • ISO code103
  • Type of pilotingDirect
  • Flow directionReversible
  • Symbol00991042
  • lapOverlap
  • Pilot pressure0.2 MPa ... 1.6 MPa
  • Pilot pressure2 bar ... 16 bar
  • Switching time reversal6 ms
  • Switching time reversal (dominating)4 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level85 dB(A)
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-10 °C ... 60 °C
  • Product weight290 g
  • Type of mountingOn sub-base With through-hole
  • Pilot air port 12Sub-base size 1 to ISO 5599-1
  • Pilot air port 14Sub-base size 1 to ISO 5599-1
  • Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
  • Note on materialsRoHS-compliant
  • Material sealsHNBR NBR
  • Material housingDie-cast aluminium



SKU 151008
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
