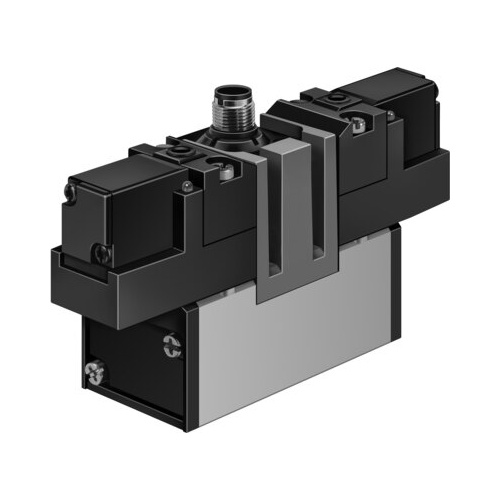

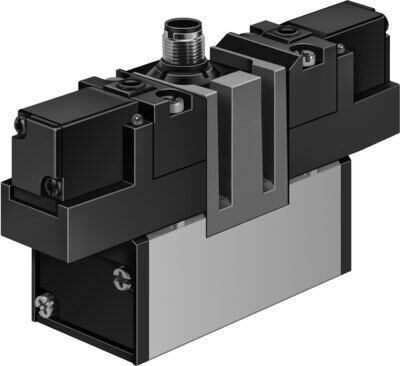

Solenoid valveJMEBH-5/2-D-3-ZSR-C

184509

GTIN: 4052568014452

Valve function
5/2-way, double solenoid
Standard nominal flow rate (standardised to DIN 1343)
4500 l/min
Pneumatic connection, port 1
Sub-base size 3 to ISO 5599-1
Type of actuation
Electrical



Technical Data Solenoid valve JMEBH-5/2-D-3-ZSR-C

  • Valve function5/2-way, double solenoid
  • Type of actuationElectrical
  • Construction width65 mm
  • Standard nominal flow rate (standardised to DIN 1343)4500 l/min
  • pneumatic working portSub-base size 3 to ISO 5599-1 G1/2
  • Operating voltage24 V DC
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • DesignPiston gate valve
  • Degree of protectionIP65
  • Nominal size14.5 mm
  • Grid dimension71 mm
  • Exhaust-air functionCan be throttled
  • Sealing principleSoft
  • Mounting positionAny
  • Conforms to standardISO 5599-1
  • Manual overrideNon-detenting
  • ISO code355
  • Type of pilotingPiloted
  • Pilot air supplyInternal
  • Flow directionNon-reversible
  • Symbol00991005
  • Switching time reversal16 ms
  • Characteristic coil data24 V DC: 2.5 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 50 °C
  • Ambient temperature-10 °C ... 50 °C
  • Product weight1080 g
  • Electrical connectionM12x1 Central plug Round design
  • Type of mountingWith through-hole
  • Pilot exhaust port 82Not ducted
  • Pilot exhaust port 84Not ducted
  • Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
  • Material sealsNBR
  • Material housingDie-cast aluminium
