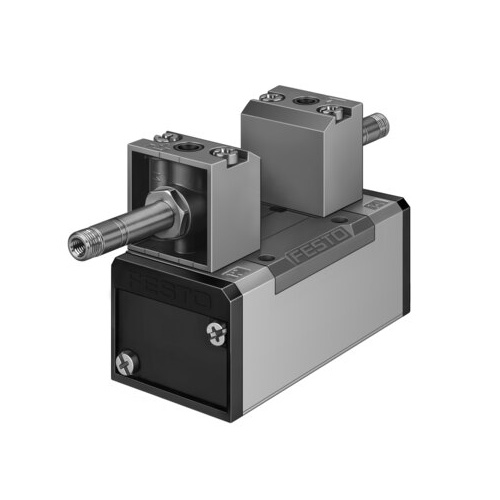

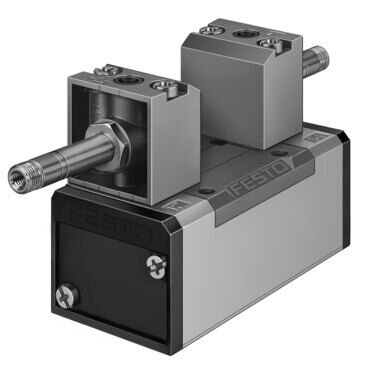

Solenoid valve

JMFDH-5/2-D-2-C

151853





GTIN: 4052568117238

Valve function
5/2-way, bistable, dominant
Standard nominal flow rate (standardised to DIN 1343)
2300 l/min
Pneumatic connection, port 1
Sub-base size 2 to ISO 5599-1
Type of actuation
Electric

Technical Data

  • Valve function5/2-way, bistable, dominant
  • Type of actuationElectric
  • Construction width54 mm
  • Standard nominal flow rate (standardised to DIN 1343)2300 l/min
  • pneumatic working portSub-base size 2 to ISO 5599-1 G3/8
  • Operating voltageVia solenoid coil, must be ordered separately
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • DesignPiston gate valve
  • Approvalc UL us - Recognized (OL)
  • Maritime classificationSee certificate
  • Certificate issuing authorityDNV-TAA000032X UL MH19482
  • Degree of protectionIP65
  • Nominal size11.5 mm
  • Grid dimension56 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Conforms to standardISO 5599-1
  • Manual overrideDetenting via accessory Non-detenting
  • ISO code269
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible
  • Symbol00991059
  • lapOverlap
  • Suitability for vacuumno
  • Switching time reversal18 ms
  • Switching time reversal (dominating)18 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level85 dB(A)
  • Ambient temperature-5 °C ... 40 °C
  • Product weight820 g
  • Electrical connection3-pin Type A, with VACF-A coil Type B industry (11 mm), with MSF coil Via solenoid coil, to be ordered separately
  • Type of mountingOn sub-base Via through-hole and screw
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1
  • Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1
  • Note on materialsRoHS-compliant
  • Material sealsHNBR NBR
  • Material housingDie-cast aluminium



SKU 151853
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
