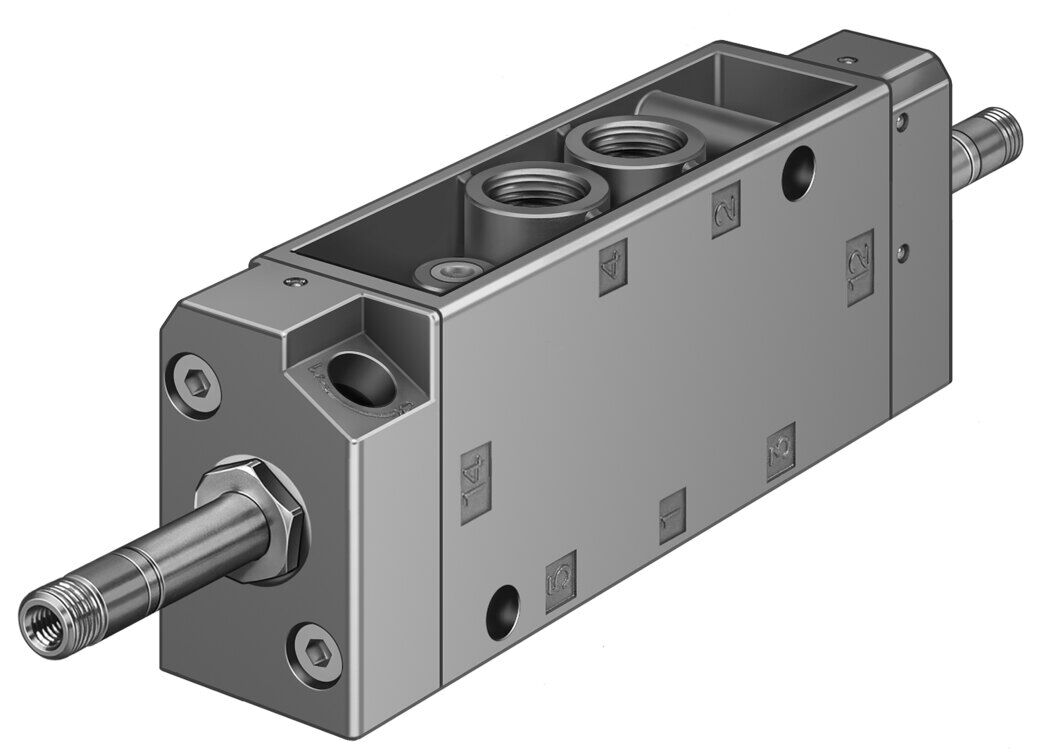

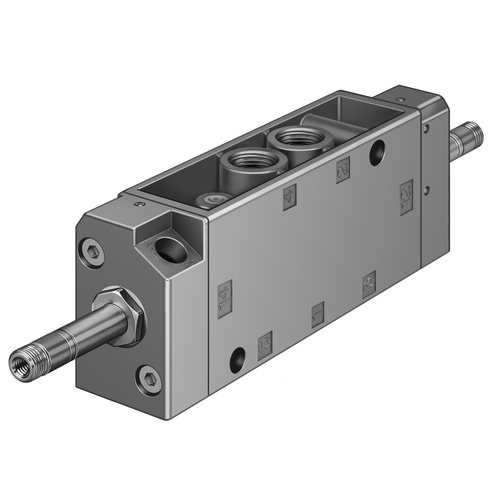

Solenoid valve

JMFH-5-1/4-S

14009





GTIN: 4052568112202

Technical Data

  • Valve function5/2 bistable
  • Type of actuationElectric
  • Construction width30.5 mm
  • Standard nominal flow rate (standardised to DIN 1343)1100 l/min
  • pneumatic working portG1/4
  • Operating voltageVia solenoid coil, must be ordered separately
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • DesignPoppet seat
  • Approvalc UL us - Recognized (OL)
  • Degree of protectionIP65
  • Nominal size7 mm
  • Grid dimension32 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingPilot actuated
  • Pilot air supplyExternal
  • Flow directionNon-reversible

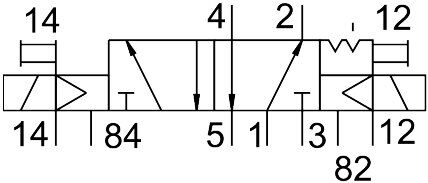

  • Symbol00995755
  • lapUnderlap
  • Pilot pressure0.12 MPa ... 0.8 MPa
  • Pilot pressure1.2 bar ... 8 bar
  • Max. switching frequency25 Hz
  • Switching time reversal11 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Characteristic coil dataSee solenoid coil, to be ordered separately
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C ... 40 °C
  • Product weight530 g
  • Electrical connectionVia F coil, to be ordered separately
  • Type of mountingOn manifold rail With through-hole
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pilot air port 12M5
  • Pilot air port 14M5
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 4G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS-compliant
  • Material sealsNBR TPE-U(PU)
  • Material housingDie-cast aluminium





SKU 14009
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
