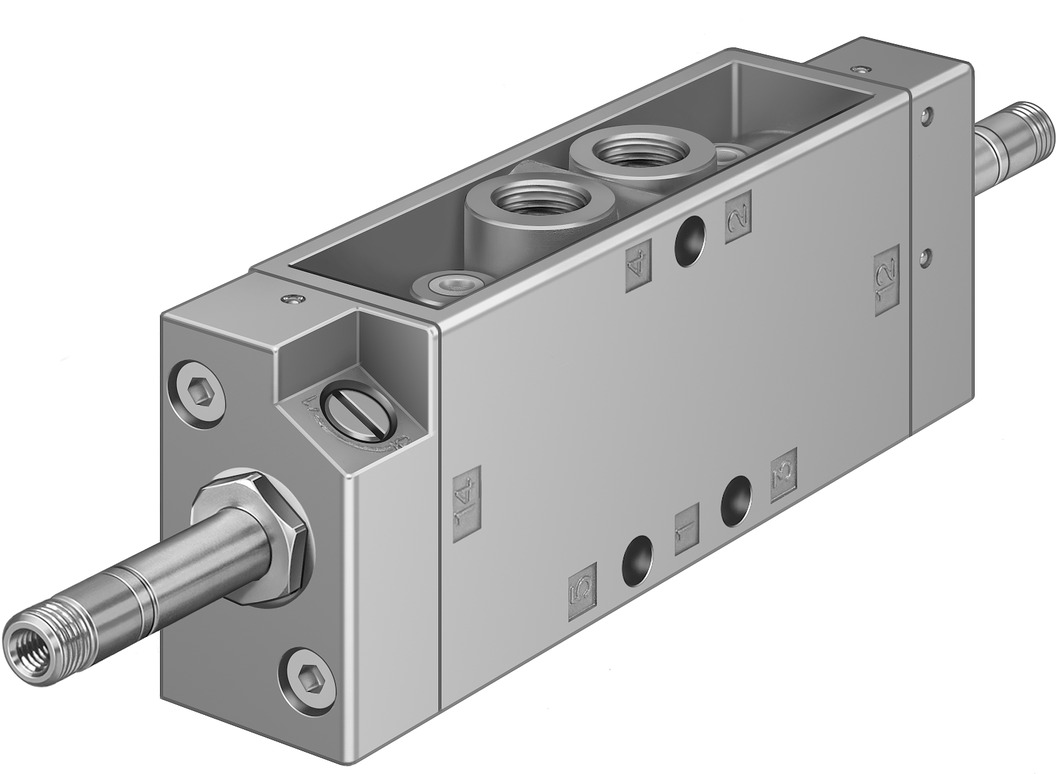

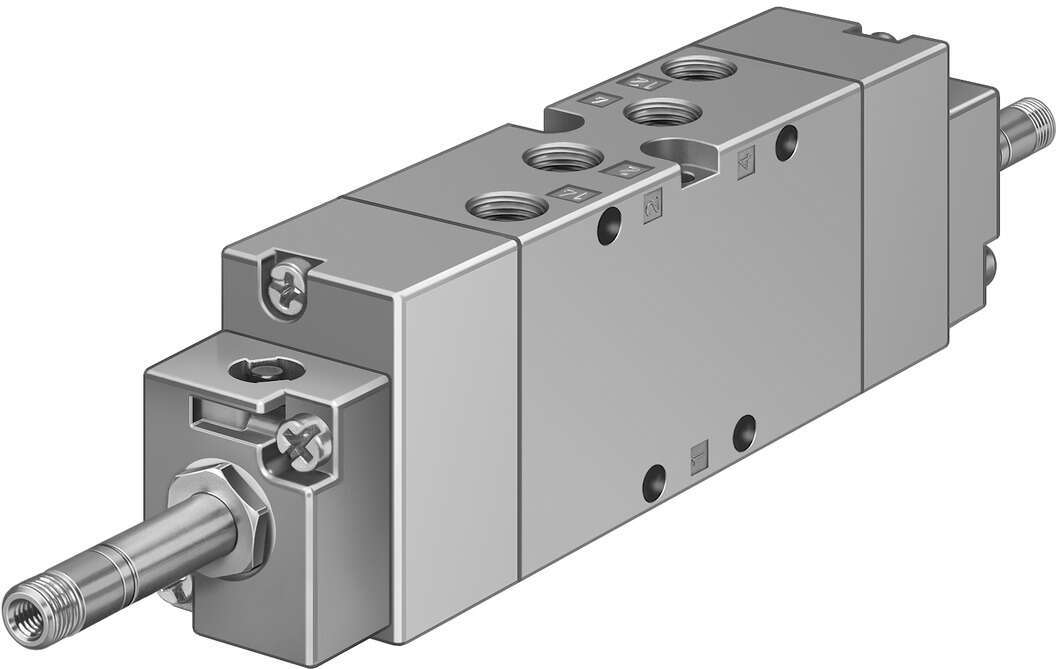

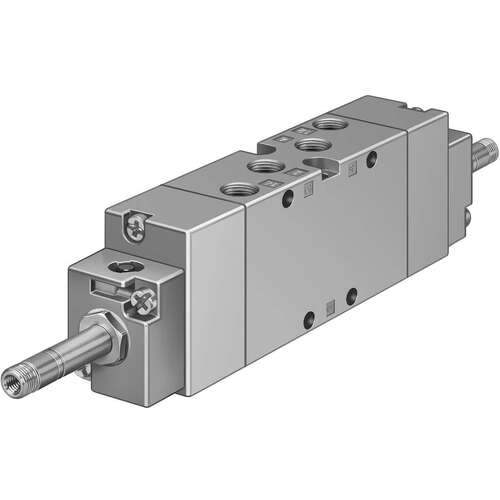

Solenoid valve

JMFH-5-1/8

8820



Technical Data

  • Valve function5/2 bistable
  • Type of actuationElectric
  • Construction width26 mm
  • Standard nominal flow rate (standardised to DIN 1343)600 l/min
  • pneumatic working portG1/8
  • Operating voltageVia solenoid coil, must be ordered separately
  • Operating pressure0.15 MPa ... 0.8 MPa
  • Operating pressure1.5 bar ... 8 bar
  • DesignPoppet seat
  • Approvalc UL us - Recognized (OL)
  • Degree of protectionIP65
  • Nominal size5 mm
  • Grid dimension27 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideDetenting
  • Type of pilotingPilot actuated
  • Flow directionNon-reversible
  • Symbol00995754
  • lapUnderlap
  • Max. switching frequency25 Hz
  • Switching time reversal10 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Characteristic coil dataSee solenoid coil, to be ordered separately
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-20 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-5 °C ... 40 °C
  • Product weight260 g
  • Electrical connectionVia F coil, to be ordered separately
  • Type of mountingOn manifold rail With through-hole
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2G1/8
  • Pneumatic connection, port 3G1/8
  • Pneumatic connection, port 4G1/8
  • Pneumatic connection, port 5G1/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR TPE-U(PU)
  • Material housingDie-cast aluminium

GTIN: 4052568001667



TIGERCLASSIC_EN.PDF

CAD data

Spare parts

Product Documentation

Technical data

Reliability datasheet



Solenoid valve

Solenoid valve

SKU 8820
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
