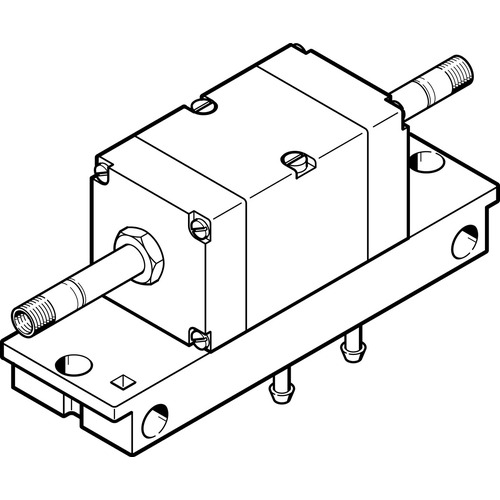

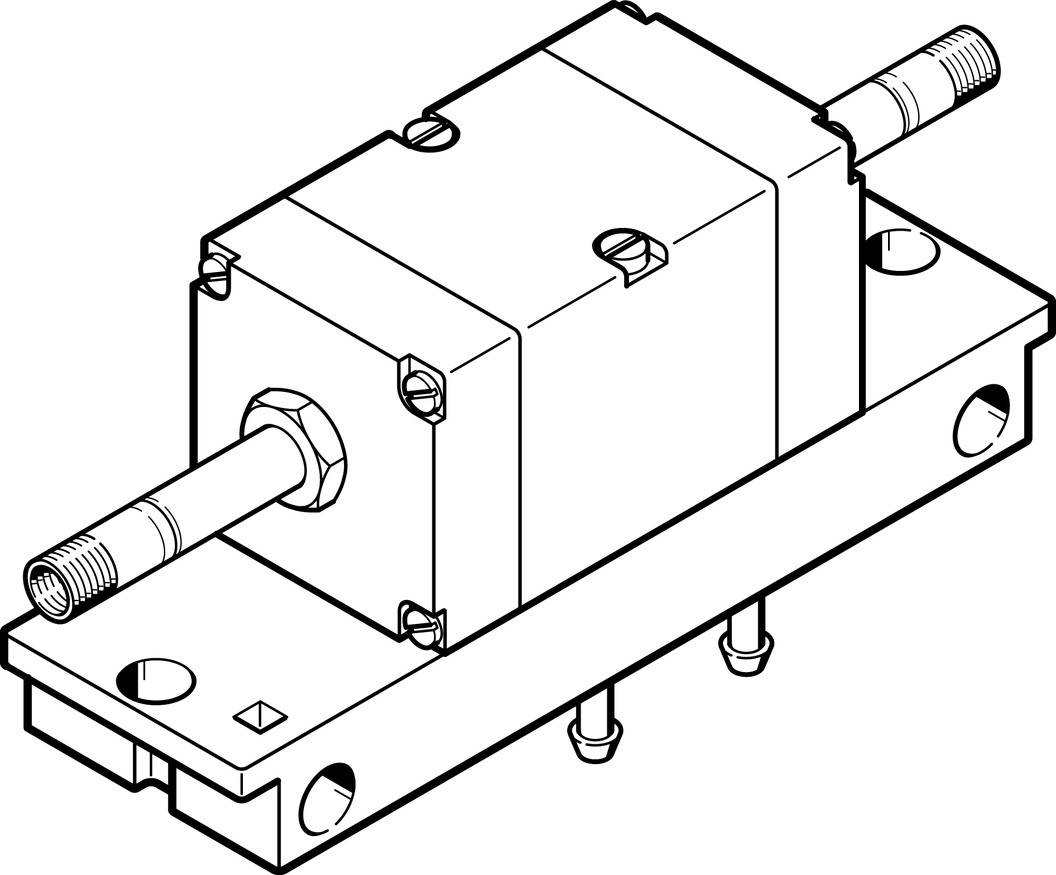

Solenoid valve

JMFH-5-PK-3

4447

Valve function
5/2 bistable
Standard nominal flow rate (standardised to DIN 1343)
105 l/min
Pneumatic connection, port 1
PK-3
Operating pressure
2 bar - 8 bar

GTIN: 4052568110468

Technical Data

  • Valve function5/2 bistable
  • Standard nominal flow rate (standardised to DIN 1343)105 l/min
  • pneumatic working portPK-3
  • Operating pressure2 bar ... 8 bar
  • DesignPoppet seat
  • Nominal size2.5 mm
  • Sealing principleSoft

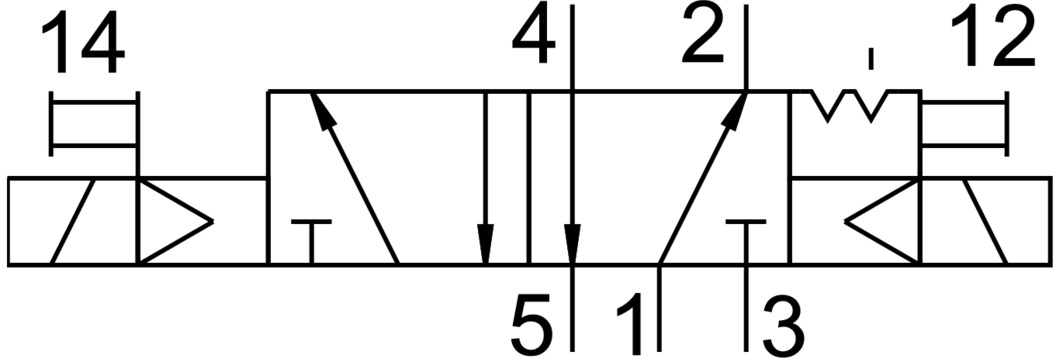

  • Symbol00995753
  • Switching time reversal13 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature0 °C ... 60 °C
  • Ambient temperature0 °C ... 40 °C
  • Product weight380 g
  • Type of mountingOn sub-base On mounting frame With through-hole
  • Pneumatic connection, port 1PK-3
  • Pneumatic connection, port 2PK-3
  • Pneumatic connection, port 3PK-3
  • Pneumatic connection, port 4PK-3
  • Pneumatic connection, port 5PK-3
  • Note on materialsRoHS-compliant
  • Material sub-baseAluminium Anodised
  • Material sealsNBR
  • Material housingAnodised

Downloads

Technical data

Links

Spare parts

Valve function N - 5/2 double solenoid

Standard nominal flow rate - 105 l/min

Pneumatic connection, port 1 - PK-3

Operating pressure - 2 bar - 8 bar

Solenoid valveSolenoid valve

SKU 4447
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
