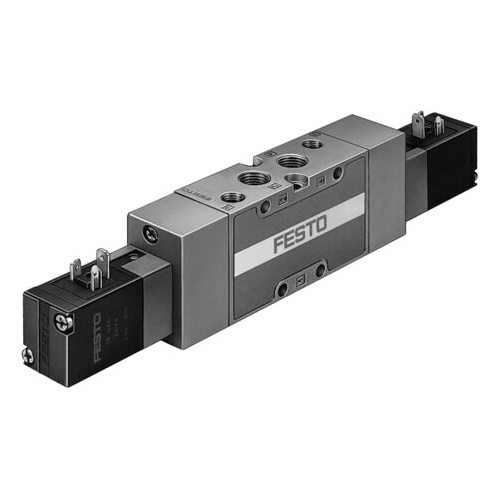

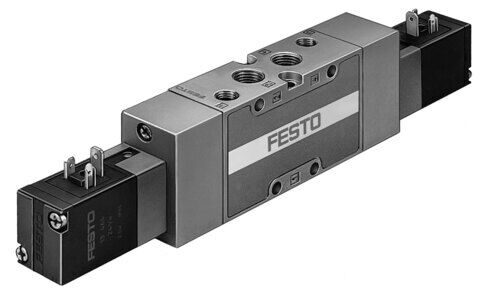

Solenoid valveJMVH-5-1/4-S-B

19137

GTIN: 4052568113223

Valve function
5/2-way, double solenoid
Standard nominal flow rate (standardised to DIN 1343)
1600 l/min
Pneumatic connection, port 1
G1/4
Type of actuation
Electrical



Technical Data Solenoid valve JMVH-5-1/4-S-B

  • Valve function5/2-way, double solenoid
  • Type of actuationElectrical
  • Construction width32 mm
  • Standard nominal flow rate (standardised to DIN 1343)1600 l/min
  • pneumatic working portG1/4
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating pressure-0.9 bar ... 10 bar
  • DesignPiston gate valve
  • Nominal size10 mm
  • Grid dimension33 mm
  • Exhaust-air functionCan be throttled
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideNon-detenting
  • Type of pilotingPiloted
  • Pilot air supplyExternal
  • Flow directionReversible
  • Symbol00991016
  • lapOverlap
  • Pilot pressure0.2 MPa ... 1 MPa
  • Pilot pressure2 bar ... 10 bar
  • b value0.38
  • C value6.35 l/sbar
  • Max. switching frequency3 Hz
  • Switching time reversal16 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Characteristic coil data24 V DC: 2.5 W
  • Permissible voltage fluctuations+/-10%
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-40 °C ... 60 °C
  • Media temperature-5 °C ... 50 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C ... 50 °C
  • Product weight615 g
  • Type of mountingOn PR rail With through-hole
  • Auxiliary pilot air port 12G1/8
  • Auxiliary pilot air port 14G1/8
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pilot air port 12G1/8
  • Pilot air port 14G1/8
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Pneumatic connection, port 4G1/4
  • Pneumatic connection, port 5G1/4
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 19137
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
