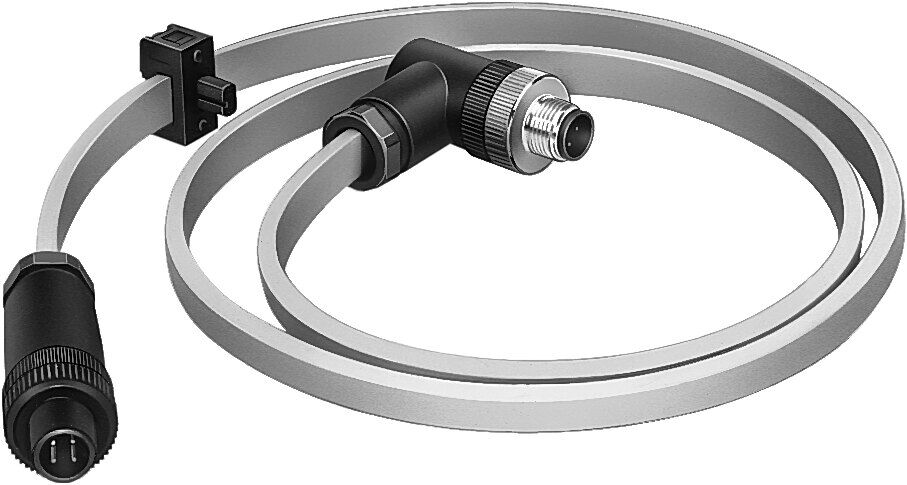

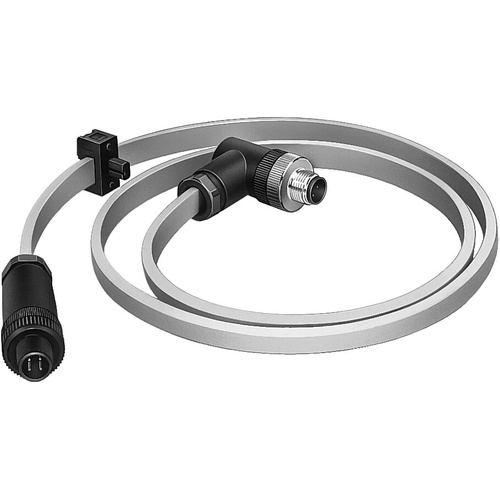

Addressing cableKASI-ADR

Technical Data Addressing cable KASI-ADR

• ProtocolAS-i
• DesignT-distributor with cables on both sides
• Distrubution2 to 1
• Additional functionsConnecting the programming device to an AS-Interface component with AS-i flat cable.
• Cable designationWithout inscription label holder
• Electrical connection 1, functionField device side
• Electrical connection 1, designSquare
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletAngled
• Electrical connection 1, connector systemAS-i
• Electrical connection 1, number of connections/cores2
• Electrical connection 1, used connections/cores2
• Electrical connection 1, type of mountingplugged in
• Electrical connection 1, connection pattern00995700
• Electrical connection 2, functionField device side
• Electrical connection 2, designRound
• Electrical connection 2, connection typeSocket
• Electrical connection 2, cable outletStraight
• Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 2, number of connections/cores4
• Electrical connection 2, used connections/cores2
• electrical connection 2, type of mountingPlugged in
• Electrical connection 2, connection pattern00995614
• Electrical connection 3, functionControl side
• Electrical connection 3, designRound
• Electrical connection 3, connection typePlug
• Electrical connection 3, cable outletAngled
• Electrical connection 3, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 3, number of connections/cores4
• Electrical connection 3, used connections/cores2
• Electrical connection 3, type of mountingPlugged in
• Electrical connection 3, connection pattern00995746
• Operational voltage range DC0 V ... 48 V
• Operational voltage range AC0 V ... 48 V
• Current rating at 40° C3 A
• Immunity to surge0.5 kV
• Cable length 12.4 m
• Cable length 20.1 m
• Cable characteristicStandard
• Test conditions cableTest conditions on request
• Cable structure2 x 1.5 mm²
• Nominal cross section conductor1.5 mm²
• Degree of protectionIP20
• Note on degree of protectionIn mounted state
• Ambient temperature-40 °C ... 85 °C
• Ambient temperature with moving cable-25 °C ... 80 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364-B2-L
• Note on materialsRoHS compliant
• Pollution degree2
• Material cable sheathRubber compound
• Cable sheath colourYellow
• Housing colourBlack
