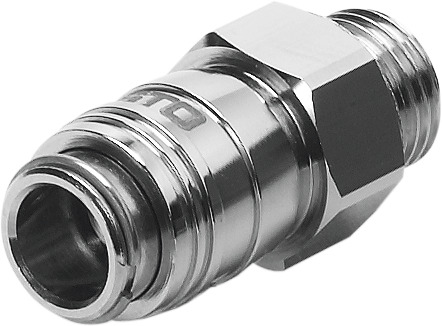

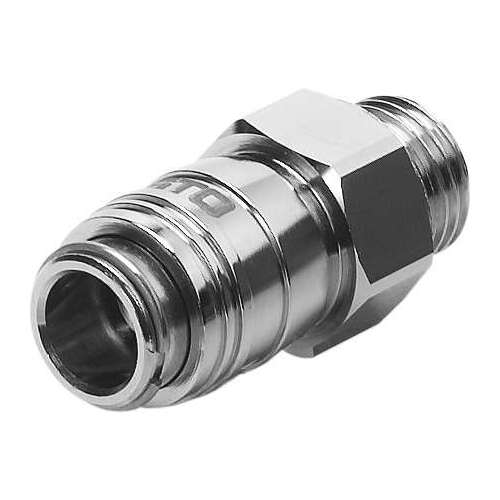

Quick coupling socket (x10 pack)

KD3-1/8-A

2142

Pneumatic connection, port 1
Male thread G1/8
Standard nominal flow rate (standardised to DIN 1343)
185 l/min - 572 l/min

GTIN: 4052568000097

Technical Data

  • Nominal size4.95 mm
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Standard nominal flow rate (standardised to DIN 1343)185 l/min ... 572 l/min
  • Nominal flow rate standardised according to ISO 8778200.5 l/min ... 620 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque5 Nm
  • Tolerance for nominal tightening torque± 15%
  • Product weight28 g
  • Pneumatic connection, port 1Male thread G1/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material springHigh-alloy stainless steel
  • Material housingBrass, nickel-plated
  • Material thread sealPA66-GF30/TPE-U
  • Material thread pieceNickel-plated brass
  • Material ballHigh-alloy stainless steel
  • Material snap ringHigh-alloy stainless steel
  • Valve body materialBrass
  • Material releasing sleeveNickel-plated brass



QUICK-COUPLINGS_EN.PDF

Quick coupling socket

SKU 2142
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
